Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060

Name: Medical Instrument PN1816 14 Twoplates mold Cold runner No21060
Brand: Chitwing
Price: 1 USD

China Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060 wholesale

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Standard mold base P/N : CI2025.507070.

Tool life : 500k shots

Surface finish : SPI B-1

Gate : Side gate

Type : Two-plates mold

Part Material : POM

Part weight : 0.39g

Injection/Runner Type : Cold runner

Contact Now

Medical Instrument

PN-1816 (1*4)

No.21060

Standard mold base P/N: CI2025.507070.

Standard

LKM

Tool life

500k shots

Mold size

250X250X251mm

Net weight

94 kg

Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060

☆ Surface finish: SPI B-1
☆ Steel of cavity and core: harden with 1*4/S136

Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060

☆ Gate: Side gate
☆ Type: Two-plates mold
☆ Part Material: POM

☆ Part size: 5.40 X 10.77 X 3.45mm
☆ Part weight: 0.39g
☆ Injection/Runner Type: Cold runner

Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060

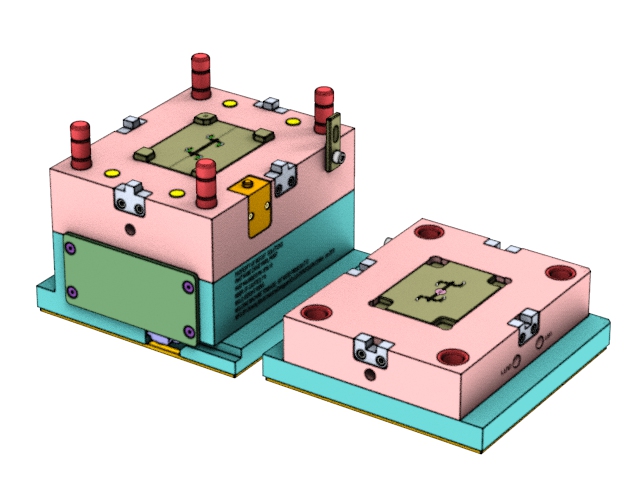

Display diagram

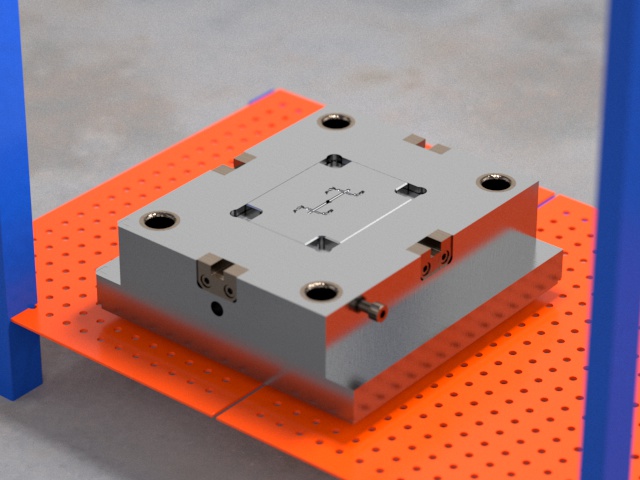

Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060 Images
