Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: Transparent Medical Instrument PN1809 14 Twoplates mold Cold runner No21064
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X300.000 X 271.000

IMM Tonnage : 100 T

Mold Weight : 148 kg

Tool life : 500000 shots

Part material : PC

Design software : 3D:UG 4.0, 2D:CAD

Runner : Cold runner

Type : Two-plates mold

Steel of cavity and core : Harden (1*4/S136)

Contact Now

Transparent Medical

Instrument PN-1809 (1*4)

No.21064

Mold size			LKM standard Standard mold base P/N: CI25 30.50.80.80
Length	Width	Height
300	300	271
Surface finish: SPI-A2 Gate: side gate Steel of cavity and core: harden with 1*4/S136 Type: Two-plates mold, easy degating, low cost IMM tonnage: 100T



The mold has stable molding quality, uniform mold wall, high glossiness, good balance of cavity pressure, long tool life for mass production; molded parts have uniform thickness w/o flow mark.

Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064

Part material	Tool life	Injection/runner type: cold runner
PC	500k shots

Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064

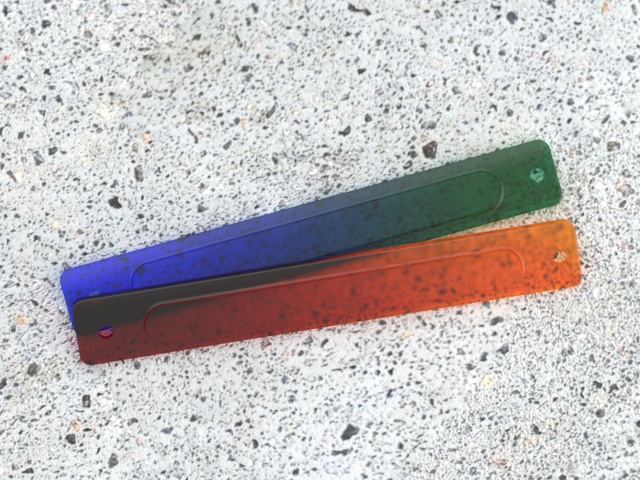

Part weight/size
0.6g / 7.65 X 57.56 X 2.87mm

Display diagram

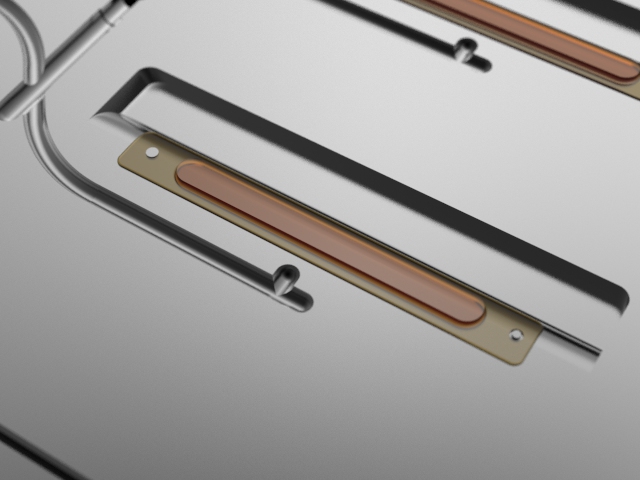

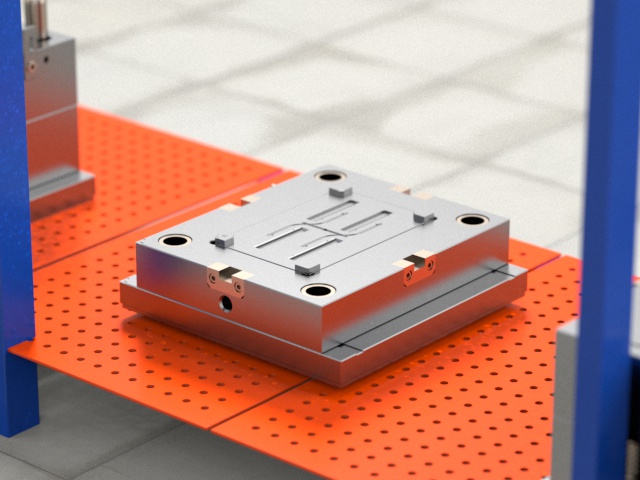

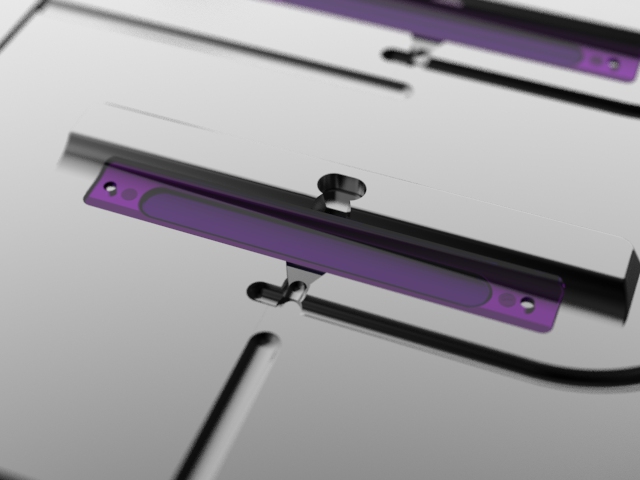

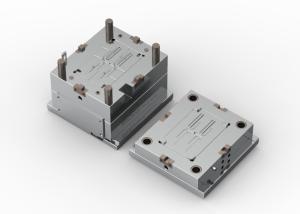

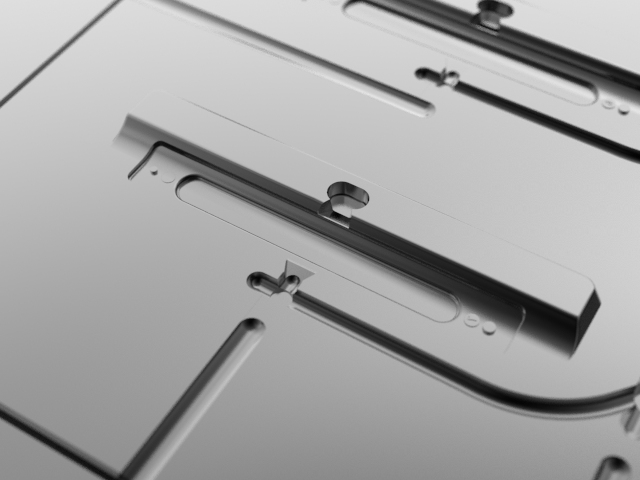

Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064 Images
