Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

Name: Transparent Medical Instrument PN1797 14 Twoplates mold Cold runner No21065
Brand: Chitwing
Price: 1 USD

China Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065 wholesale

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Standard mold base P/N : CI2025.507070

Type : Two-plates mold

Gate : Cashew gate

Part material : PC

Contact Now

Transparent Medical Instrument PN-1797 (1*4)

No.21065

L250 | W250 | H251

Net weight: 94 kg Standard mold base P/N: CI2025.507070
Standard: LKM

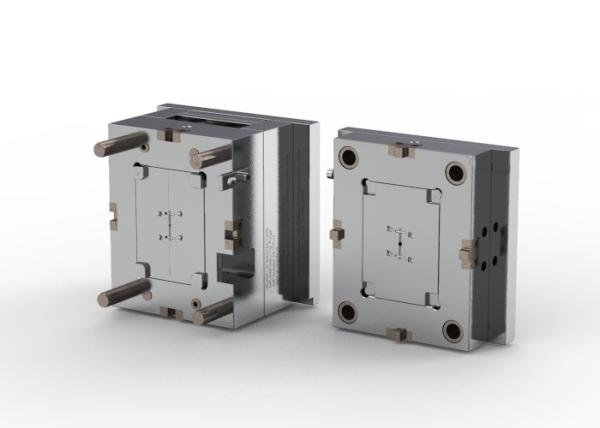

This is a two-plates mold with cashew gate to fill the melt from the inside, with short

cycle time, fast filling, minimized gate marks, smooth demolding, low cost to meet

requirements for long-term stable mass production; the molded parts have high

quality w/o burrs

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

Surface finish:Polished to SPI B-2
Steel of cavity and core: harden with 1*4/S136
Greatly improve the surface smoothness, anti-wearing and anti-corrosion performance

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

☆ Injection/runner type:cold runner
☆ IMM tonnage:100T

☆ Tool life:500k shots

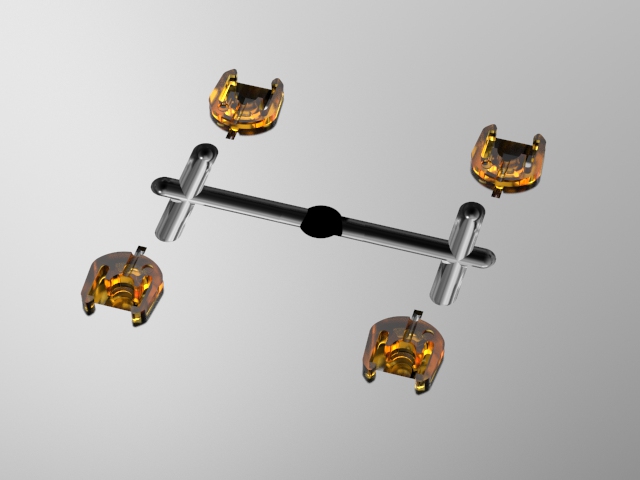

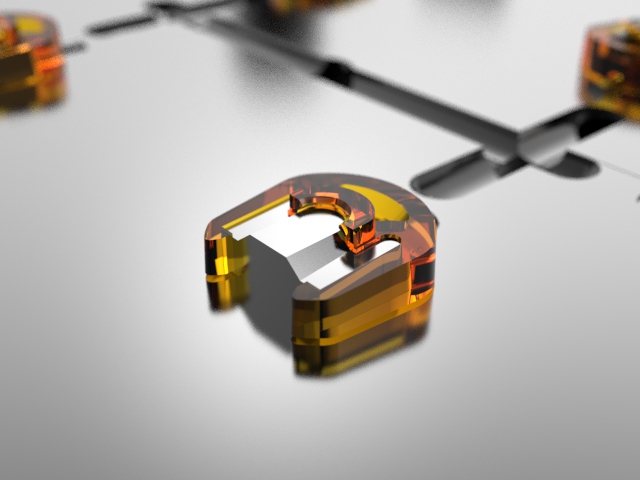

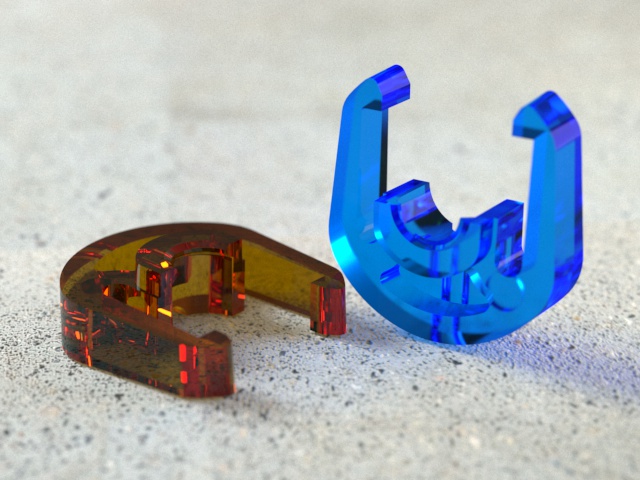

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

☆ Part material: PC
☆ Part size: 8.24 X 8.21 X 2.72 mm
☆ Part weight: 0.22g

Display diagram
