OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Precision Injection Molding amp Transparent Medical Instrument PN2059 14 No21068
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 300.000 X 271.000

IMM Tonnage : 100T

Mold Weight : 141kg

Mold base : Standard (CI2530.508080)

Standard : LKM

Injection/Runner Type : Cold runner

Design software : 3D-UG 4.0/ 2D-CAD

Mould life : 500，000 shots

Contact Now

Transparent Medical Instrument PN-2059 (1*4)

No.21068

[Size]: 300x300x271mm | [Standard]: LKM
[Mold base]: Standard (CI2530.508080)

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068

[Weight]: 141 kg
[IMM tonnage]: 100T

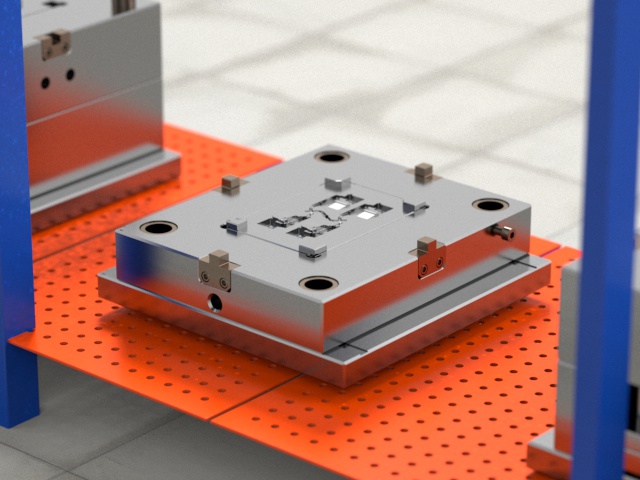

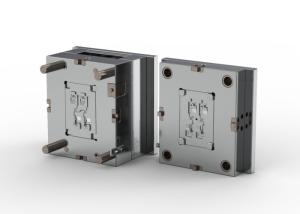

[Type]: Two-plates mold		[Gate]: side gate
The part material is PC with poor fluidity, and high pressure injection is required for molding. The mold is designed with two-plate structure and side gate, with short cycle time, minimized loss of material and easy processing



Steel of cavity and core		Surface finish
Harden (1*4/S136)		SPI A3

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068

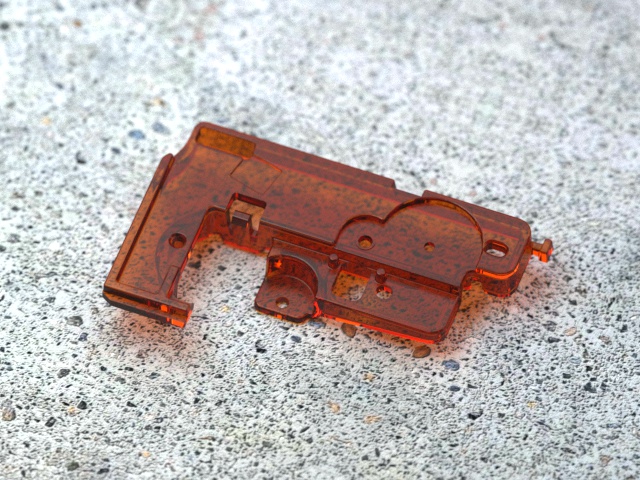

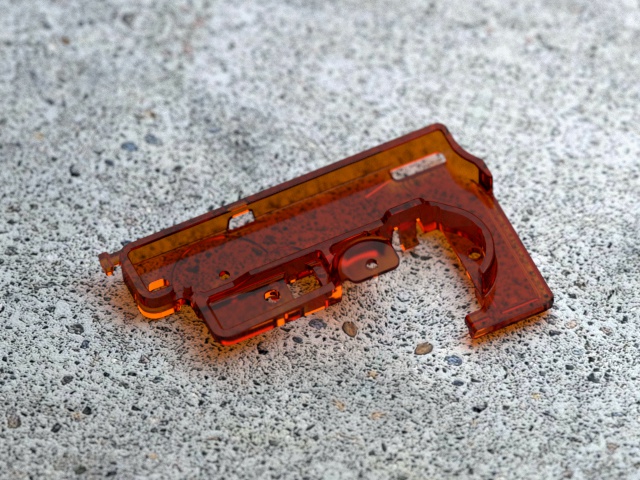

☆ [Part size]: 22.20 X 37.08 X 6.75mm

☆ [Part weight]: 0.83g

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068

Display diagram

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068 Images
