OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1913 (1*4) No.21069

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1913 (1*4) No.21069 Images

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Precision Injection Molding amp Transparent Medical Instrument PN1913 14 No21069
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100 T

Mold Weight : 94kg

Standard mold base P/N : CI2025.507070

Part material : PA12+15%GF

Part weight : 0.45g

Type : Two-plates mold

Contact Now

Transparent Medical Instrument PN-1913 (1*4)

No.21069

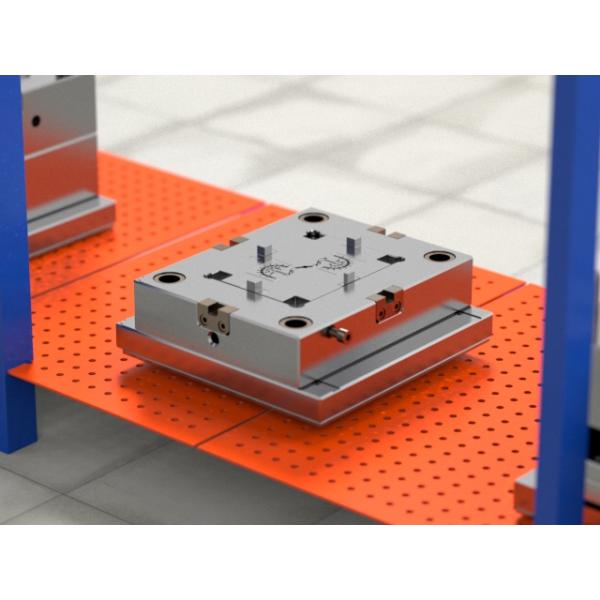

[Standard]: LKM
Standard mold base P/N: CI2025.507070
L250 | W250 | H250 Net weight 94 kg

Part material: PA12+15%GF

Gate: Side gate

Type: Two-plates mold

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1913 (1*4) No.21069

Features: Assisted Ejection Injection/Runner

Type: Cold Runner

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1913 (1*4) No.21069

[IMM tonnage]: 100T

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1913 (1*4) No.21069

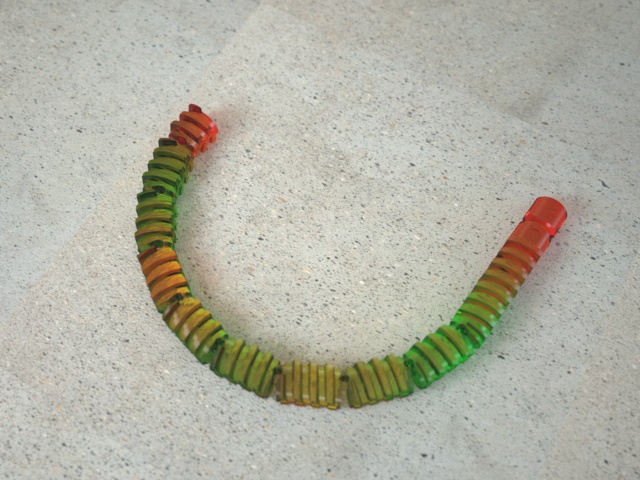

Part weight

0.45g

Part Size

26.39 X 30.51 X 4.00mm

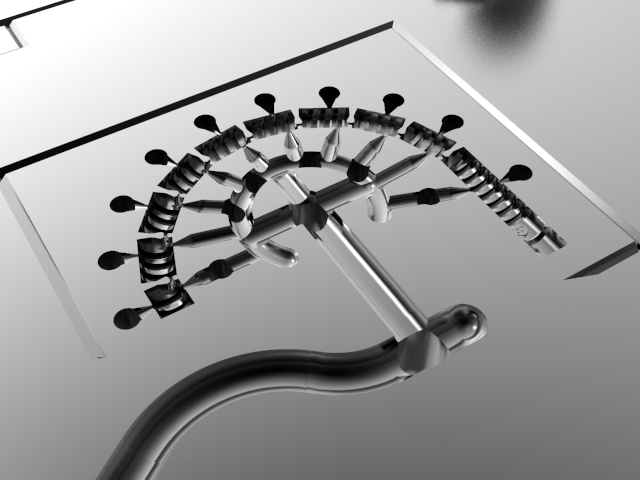

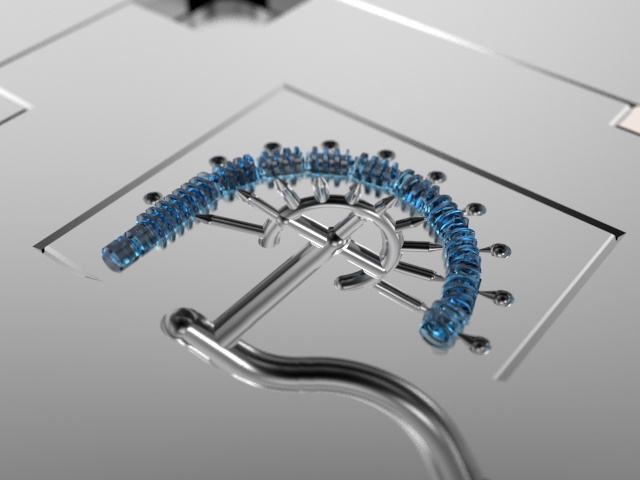

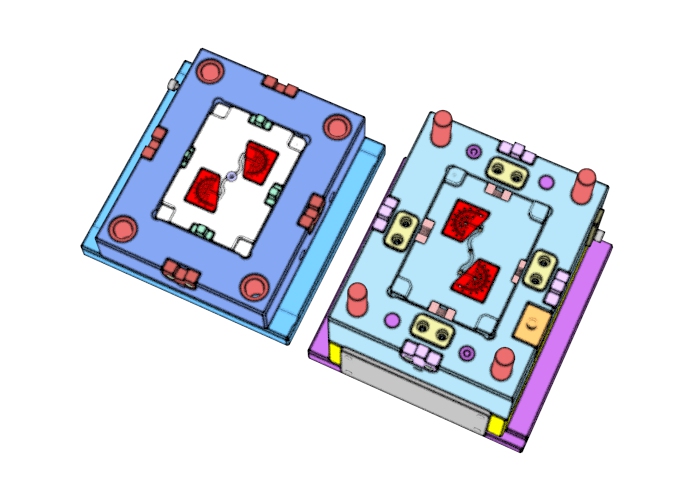

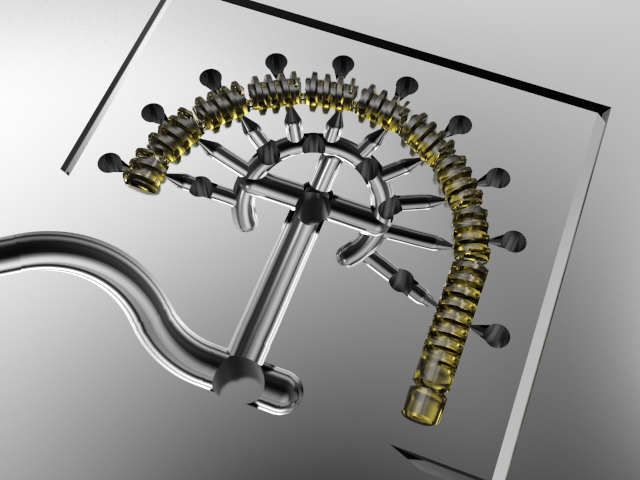

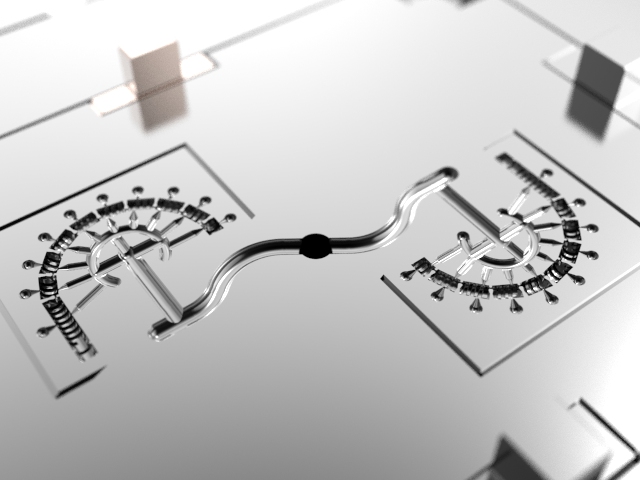

Display diagram

This is a two-plates mold developed (designed and manufactured) by Chitwing with side gate according to the part appearance characteristics and cost-effective requirements. The mold is easy to fill, with minimized loss of material. The surface polished to SPI-B1; harden the cavity and core with 1*4/S136 to improve the hardness, anti-corrosion and anti-wearing performance; with assisted demolding, short cycle time, reducing the labor cost
