Name: OEM ODM Precision Injection Molding amp Transparent Instrument PN1822 12 No21073
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : CWM21073 Instrument PN-1822 -B

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 266.000

IMM Tonnage : 100T

Mold Weight : 99kg

Mold base : Standard mold base CI2025.507070

Standard : LKM

Slide : 1

Type : Two-plates mold

Design software : 3D:UG 4.0, 2D:CAD

Mould life : ≥500000 shots

Contact Now

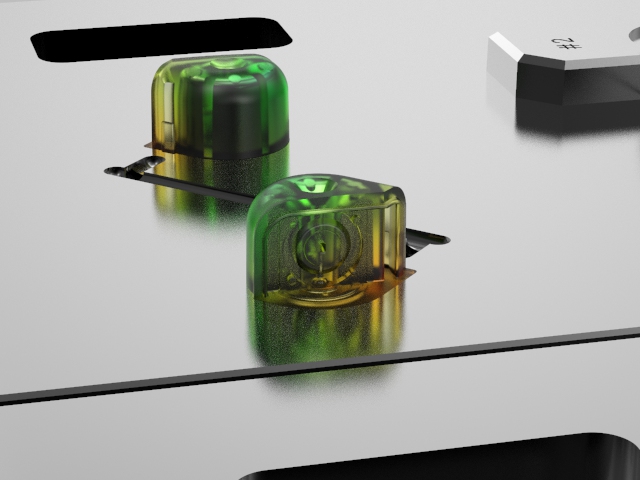

Transparent Instrument PN-1822 (1*2)

No.21073-B

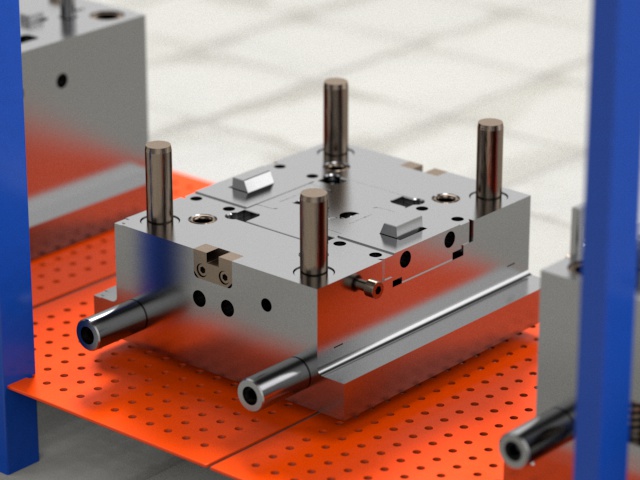

[Mold base] Standard mold base CI2025.507070
[L]: 250mm
[W]: 250mm
[H]: 266mm
[Standard]: LKM
[Slide]: 1
[Net weight]: 99 kg

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073

[Type]: Two-plates mold

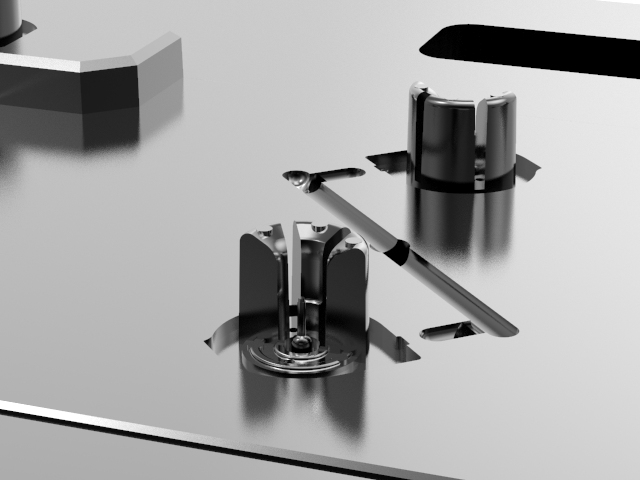

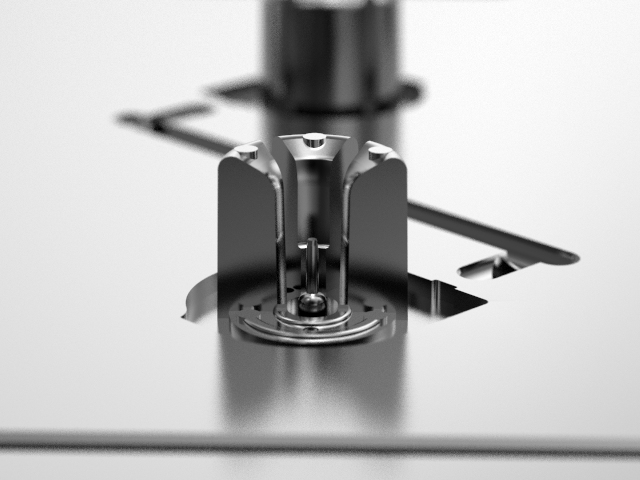

[Gate]: cashew gate

[Injection/Runner Type]: Cold Runner

[IMM tonnage]: 100T

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073

[Tool life]: 500k shots

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073

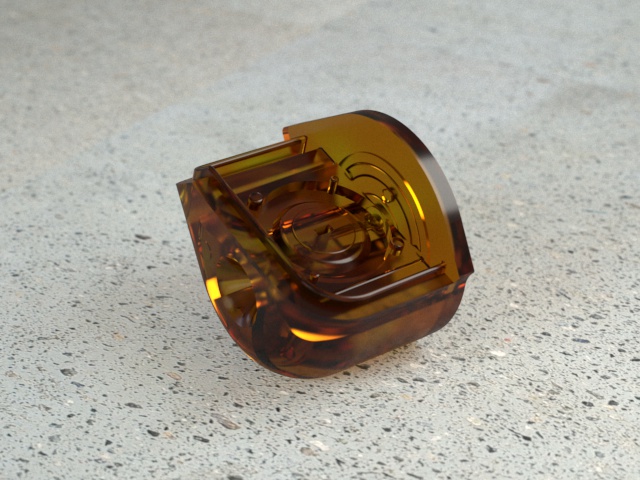

[Part material/net weight]: PC/1.36 G [Part size]: 15.87x 19.02x11.93mm

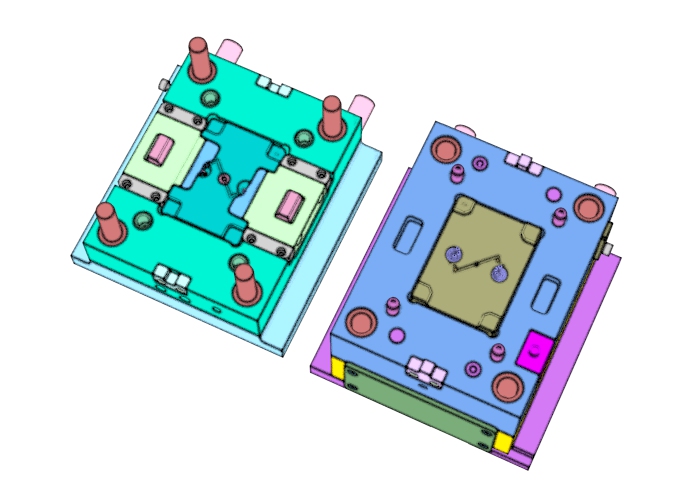

Display diagram

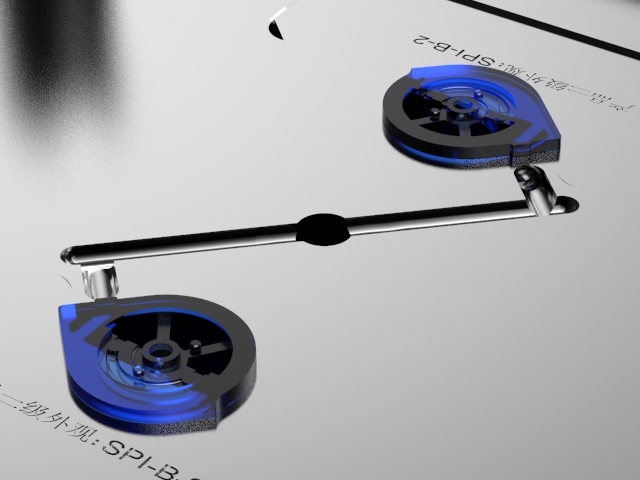

Surface finish
① Partial surfaces polished to SPI B-2
② Partial surfaces polished with MT11003 (RMS 60)
③ Partial surfaces polished to SPI B-1
④ Partial surfaces polished to SPI A-2

Steel of cavity and core
① Harden (1*2/S136)
