OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B

Brand Name : Chitwing

Model Number : Earphone Charging Case

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.00 X 400.00 X 351.00

IMM Tonnage : 130T

Mold Weight : 315KG

Tool life : ≥500K shots

Gate : Sub gate

Surface finish : SPI-A1/polished to 1000#/VDI21# (Makino)

Part material : PC+ABS

Part weight : 4.5g

Features : 2 slides, 5+1 gate lifters

Contact Now

Upper cover of transparent

earphone charging box

No.24195-B

Brand: Chitwing

Origin: China

OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B

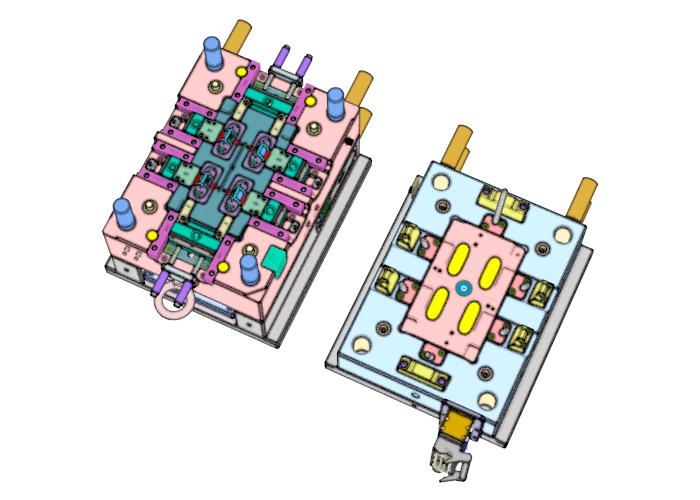

The mold was developed (designed and manufactured) by Chitwing, and is designed with hot

runner free of cold slug to save costs and reduce production loss and short cycle time.

OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B

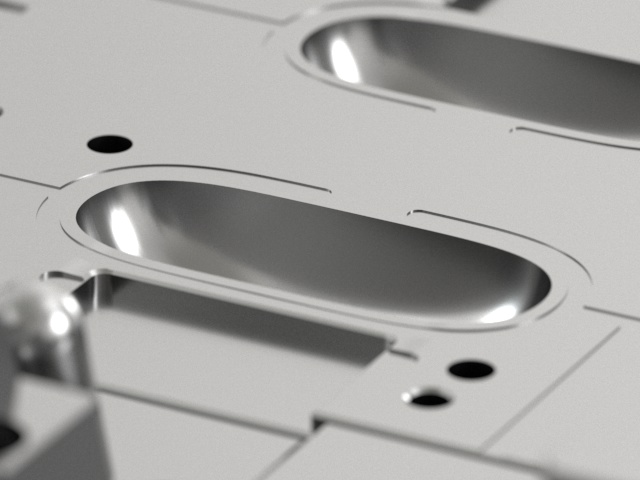

Hot runner turns to cold runner sub gate. Surface finish: 1. A surface polished to SPI-A1;

2. Secondary surface polished to 1000# sandpaper; 3. Other surfaces EDM with

VDI21# (Makino). Harden the cavity and core to have high hardness and good anti-wearing

performance; and the cavity and core > 50HRC.

OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B

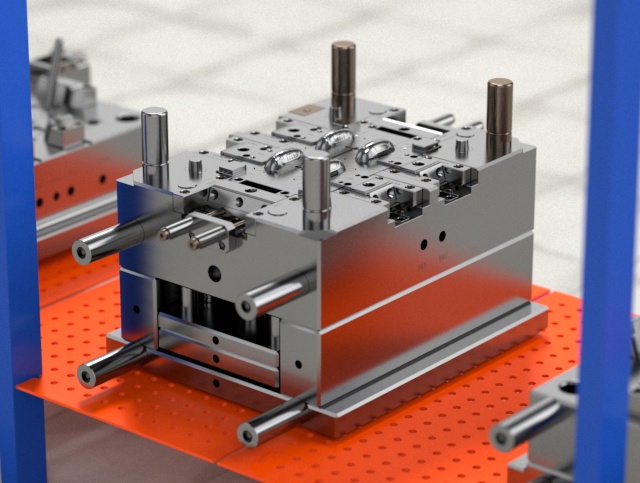

Mold net weight 315kg Standard LKM
Length 350 Features
 2 slides
Width 400 5+1 gate lifters
Height 351 IMM Tonnage 130T

OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B

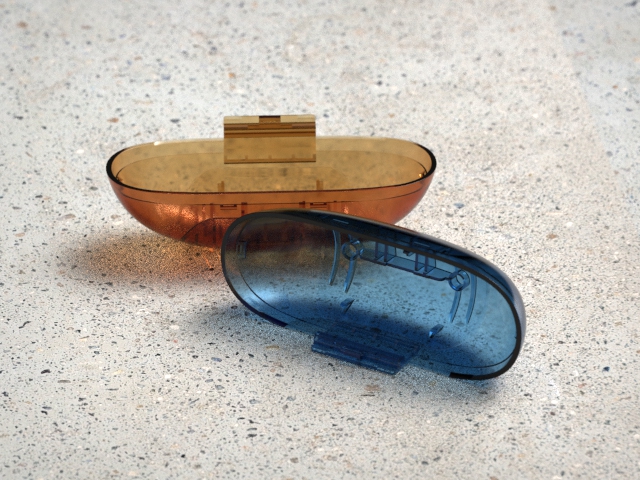

Part material PC+ABS
Part weight 4.5g
Part size 62.89X23.96X20.53mm

Display diagram

OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-BOEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-BOEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-BOEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B
