Name: OEM ODM Electronic Enclosures Transparent middle housing 11 No24670B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ：Electronic Enclosures / Transparent middle housing (1*1) No.24670-B wholesale

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 760.000 X 660.000 X 750.100mm

IMM Tonnage : 400T

Mold Weight : 2269.06KG

Standard : LKM

Surface finish : Polish to 800# sandpaper and textured

Features : 4 Slide& 4 lifter

Steel of cavity and core : Harden with S136

Mold Runner : Hot Sprue Cold Runner

Contact Now

Transparent middle housing (1*1)

No.24670-B

Standard

Mold size

Slide

Lifter

Cold runner

LKM

L: 760mm

W: 660mm

H: 750mm

Steel of cavity and core

Harden with S136

Surface finish

Polish to 800# sandpaper

and textured

OEM / ODM ：Electronic Enclosures / Transparent middle housing (1*1) No.24670-B

Part size
L: 100.02mm	W: 100.02mm	H: 185.7mm

OEM / ODM ：Electronic Enclosures / Transparent middle housing (1*1) No.24670-B

Mold net weight	Part net weight
2269.06KG	191g

OEM / ODM ：Electronic Enclosures / Transparent middle housing (1*1) No.24670-B

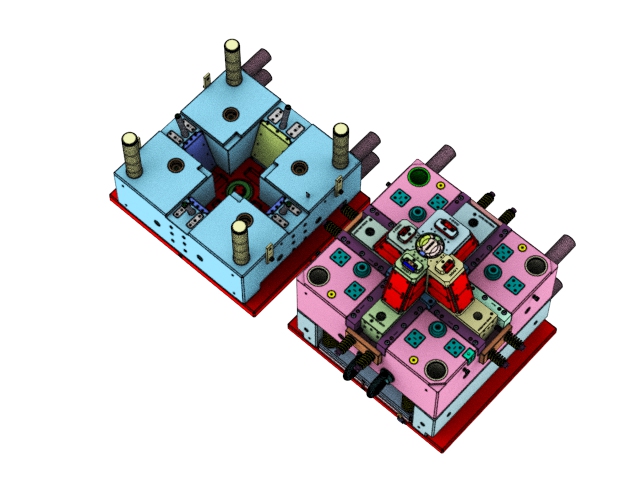

Display diagram

This is a two-plates mold with sub gate, with fast filling, low pressure and good feeding capacity, self-degating; fit 400T machine, tool life up to 500k shots
