OEM/ODM Custom Consumer Electronics Molds / Transparent earphone left rear cover trim (1*8) No.24215

Name: OEMODM Custom Consumer Electronics Molds Transparent earphone left rear cover trim 18 No24215
Brand: Chitwing
Price: 1 USD

China OEM/ODM Custom Consumer Electronics Molds / Transparent earphone left rear cover trim (1*8) No.24215 wholesale

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 291

IMM Tonnage : 100T

Mold Weight : 159KG

Standard : LKM

Injection/runner type : Cold runner

Type : Two-plates mold

lifters : 4

Standard mold base P/N : CI2530.6010080.

Part material : PC

Part size : 9.90 X 4.61 X 31.60mm

Part weight : 0.17g

Mold type : Consumer Electronics Molds

Contact Now

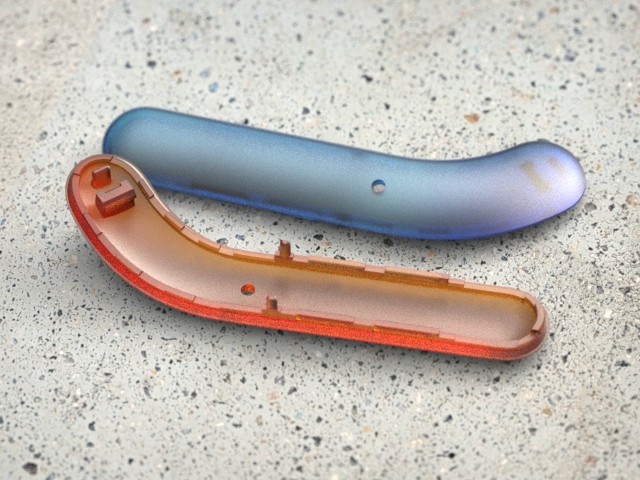

Transparent earphone

left rear cover trim (1*8)

No.24215

Standard mold base P/N: CI2530.6010080.
Length	300	Width	300	Height	291
Type	Two-plates mold	Partial surfaces polished to 1000# sandpaper
Injection/runner type		Partial surfaces polished to 1000# sandpaper

OEM/ODM Custom Consumer Electronics Molds / Transparent earphone left rear cover trim (1*8) No.24215

Steel of cavity		Steel of core
Harden with 1*8/S136		Harden with 1*8/S136

OEM/ODM Custom Consumer Electronics Molds / Transparent earphone left rear cover trim (1*8) No.24215

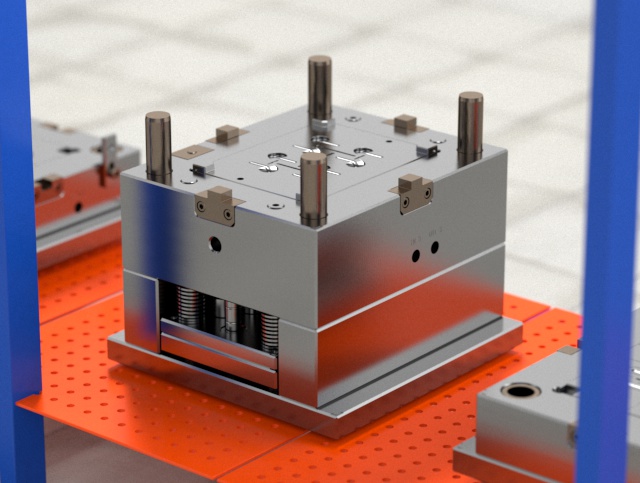

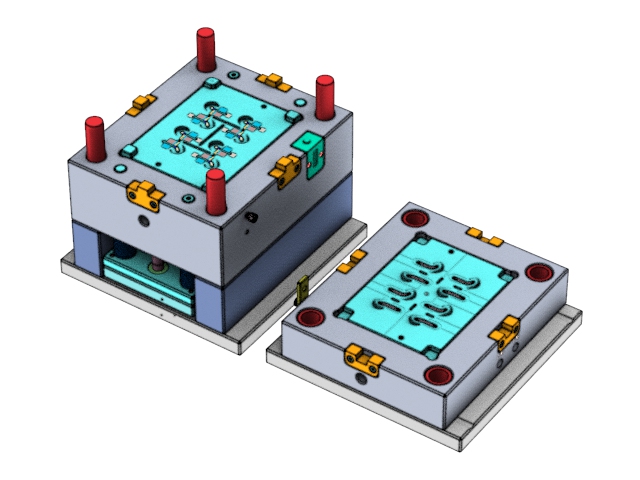

The mold is designed with cashew gate and 4 lifters and meet LKM standard. It has scientific

design, stable high quality, short cycle time, low cost, and the molded part has fine edges w/o

flash

OEM/ODM Custom Consumer Electronics Molds / Transparent earphone left rear cover trim (1*8) No.24215

Part material	PC
Part size	9.90 X 4.61 X 31.60mm
Part weight	0.17g
IMM Tonnage	100T

Display diagram
