OEM / ODM ： Cold Runner Injection Molding & Transparent On-board Upper Bracket (1*2) No.23913

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Cold Runner Injection Molding amp Transparent Onboard Upper Bracket 12 No23913
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : In-Car Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 350.000 X 461.000

IMM Tonnage : 100T

Mold Weight : 357kg

Type : Three-plates mold

Gate : Pin point gate + side gate

Mold base P/N : FCI3035 8012090

Surface finish : SPI-B2 polished

Injection type : Hot runner

runner type : Hot runner

Contact Now

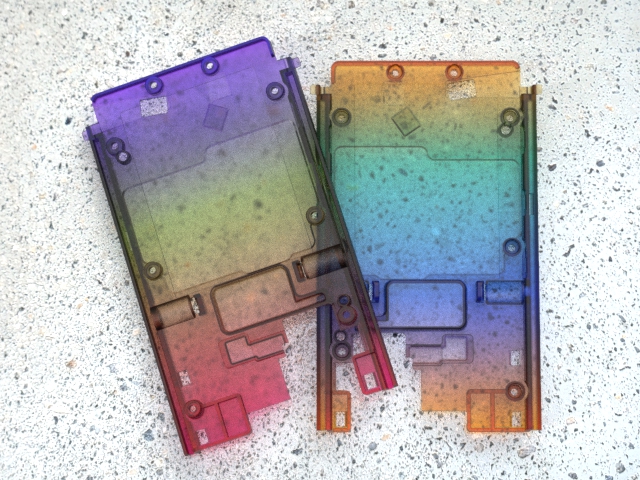

Transparent On-board

Upper Bracket (1*2)

No.23913

[Mold base P/N]: FCI3035 8012090 [Size]: [L] 350 x [W] 350 x [H] 461 mm [Standard]: LKM	[Type]	[Gate] - Pin point gate + side gate [Part material] - PC

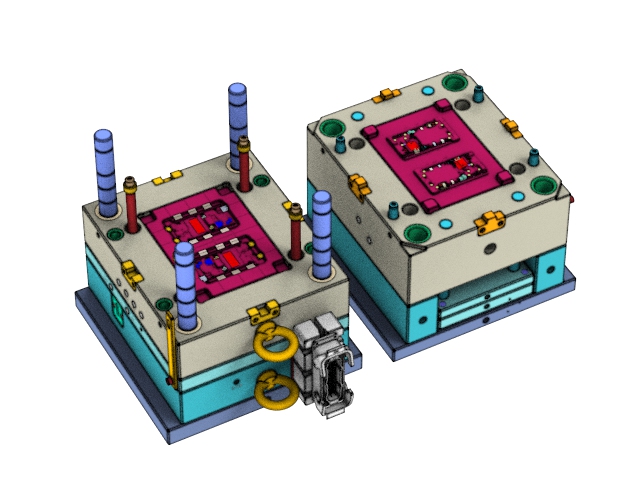

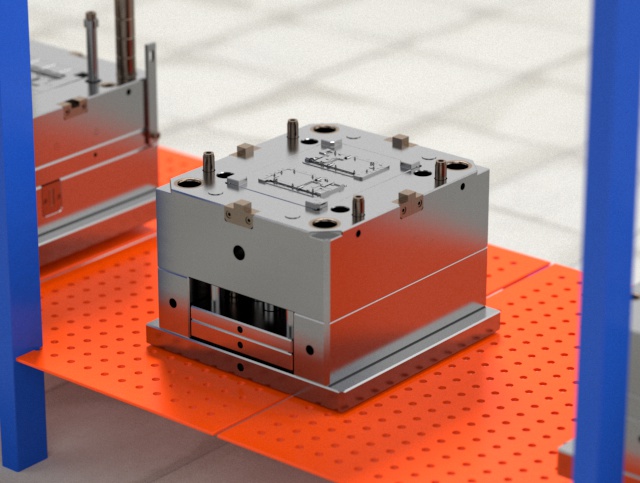

	Three-plates mold

OEM / ODM ： Cold Runner Injection Molding & Transparent On-board Upper Bracket (1*2) No.23913

[Tool life]: 500K shots [Lifter[: 5 [Surface finish]: SPI-B2 polished [Steel of cavity & core]: Harden (1*2/S136)					[IMM Tonnage]: 100T [Size]: [L] 90.95 x [W] 56.60 x [H] 8.40mm [Part weight]: 3.5g [Mold net weight]: 357kg

OEM / ODM ： Cold Runner Injection Molding & Transparent On-board Upper Bracket (1*2) No.23913

[Injection/runner type]: Hot runner

This is a 3 plates mold, with hot sprue and pin point gate + side gate, can fill the cavity stably,

self-degate and post-treatment free.
Melt fill in cavity with even temperature, pressure and density. Molded part with low residual

stress and minimize warpage,high cosmetic quality and stable dimension.

OEM / ODM ： Cold Runner Injection Molding & Transparent On-board Upper Bracket (1*2) No.23913

Display diagram

Product Tags:

Three Plate Cold Runner Mould
