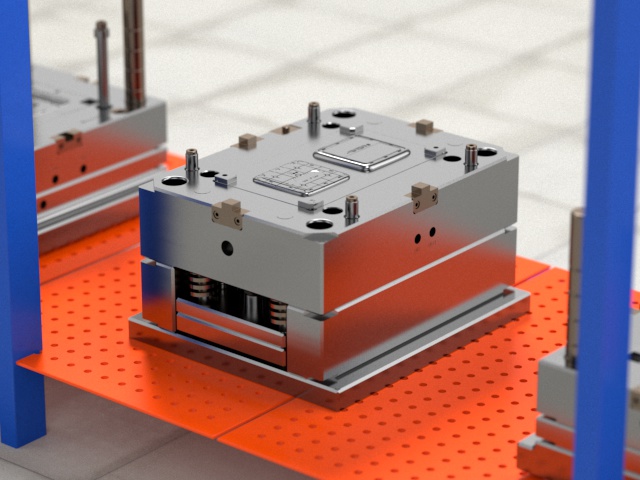

OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

Router Single Cavity Injection Mold

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Single Cavity Injection Mold amp Top cover 12 No23392
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Router

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350 X 400 X 366

IMM Tonnage : 180T

Mold Weight : 318KG

Design software : 3D:UG 4.0/2D:CAD

Mould base : LKM

Runner : Cold runner

Mould life : ≥500000 shots

Contact Now

Bottom cover (1*2)

No.23392

Gate

Pin point gate

Type

Three-plates mold

OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

Surface finish

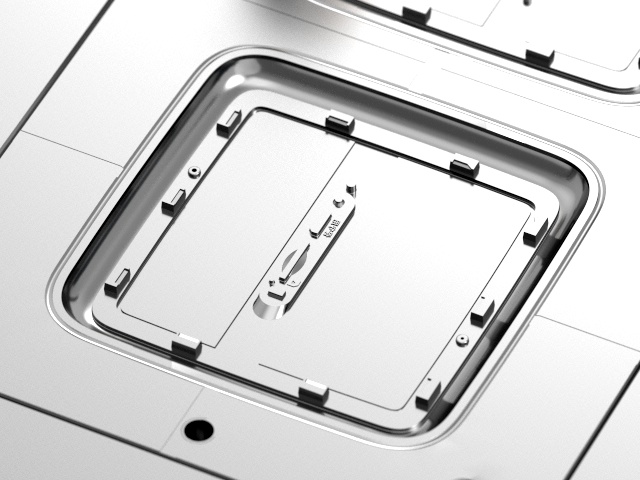

A surface EDM with VDI27# (Makino)		Secondary surface EDM with VDI18# (Makino)		Other large surfaces EDM with VDI30# (Makino)

OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

Steel of cavity and core
Harden (1*2/S136)

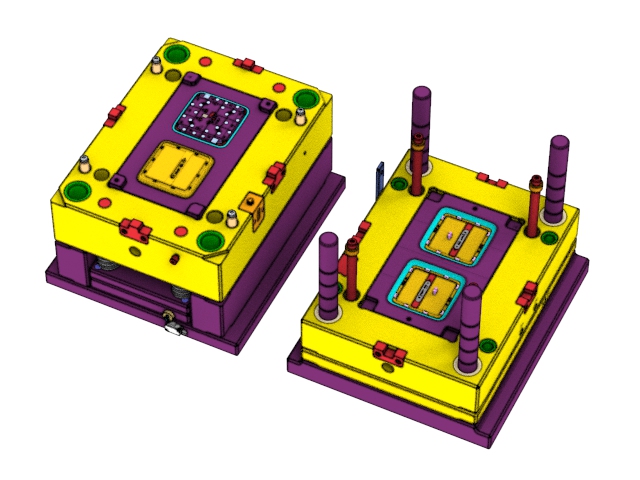

Display diagram

Product Tags:

The mold is developed by Chitwing, with full consideration of cost-effective performance; clean steel billet, LKM standard; the cavity has good smoothness and no pits; harden the cavity and core to have high hardness and anti-wearing performance; good fluidity and balanced pressure in the cavity; the molded part has smooth surface, complete details and stable quality, w/o flow marks and gas marks
