OEM / ODM ： Single Cavity Injection Mold & Transparent top cover (1*2) No.23392

Name: OEM ODM Single Cavity Injection Mold amp Transparent top cover 12 No23392
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Single Cavity Injection Mold & Transparent top cover (1*2) No.23392 wholesale

Brand Name : Chitwing

Model Number : Router

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350 X 400 X 366

IMM Tonnage : 180T

Mould base : LKM

Mold Weight : 318KG

Standard mold base P/N : FCI3040.7010090.

Gate : Pin point gate

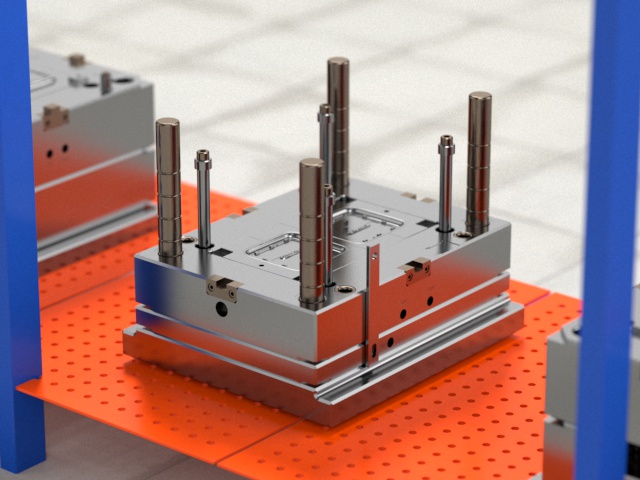

Type : Three-plates mold

Contact Now

Transparent bottom cover (1*2)

No.23392

Standard

Gate

Type

Standard mold base

P/N: FCI3040.7010090.

Net

weight

LKM

Pin point

gate

Three-plates

mold

Length

350mm

Width

400mm

High

366mm

318kg

OEM / ODM ： Single Cavity Injection Mold & Transparent top cover (1*2) No.23392

Surface

finish

1. A surface EDM with VDI27# (Makino)

IMM Tonnage

2. Secondary surface EDM with VDI18# (Makino)

180T

3. Other large surfaces EDM with VDI30# (Makino)

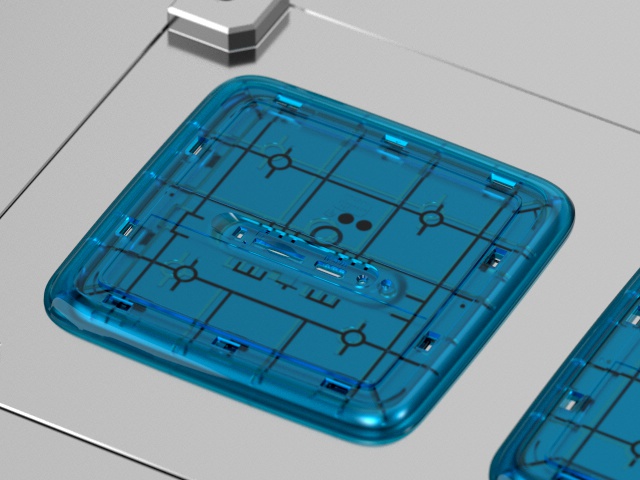

△ Part size: 97.4 * 97.4 * 9.9mm (PC+ABS material, weight about 2.5g)

OEM / ODM ： Single Cavity Injection Mold & Transparent top cover (1*2) No.23392

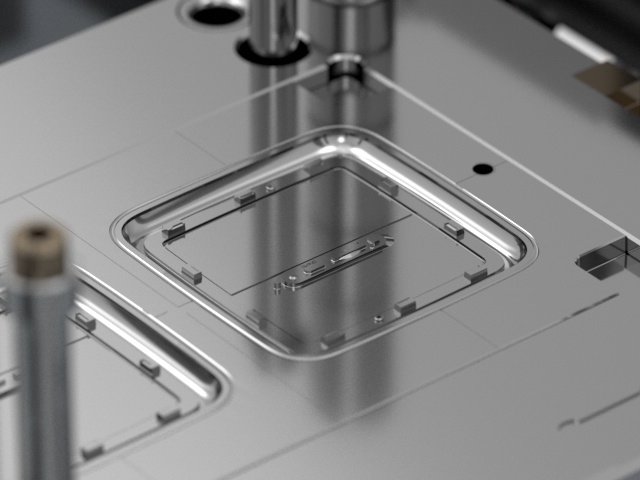

Steel of cavity	Harden (1*2/S136)
Steel of core

The mold is designed with a cold runner, fully considering short cycle time and aesthetic appearance; harden the mold to improve the hardness, anti-fatigue and anti-wearing performance of the cavity; the tool life > 500k shots, the cavity has good fluidity and balanced pressure; the part is well molded with smooth surface and no flow marks.

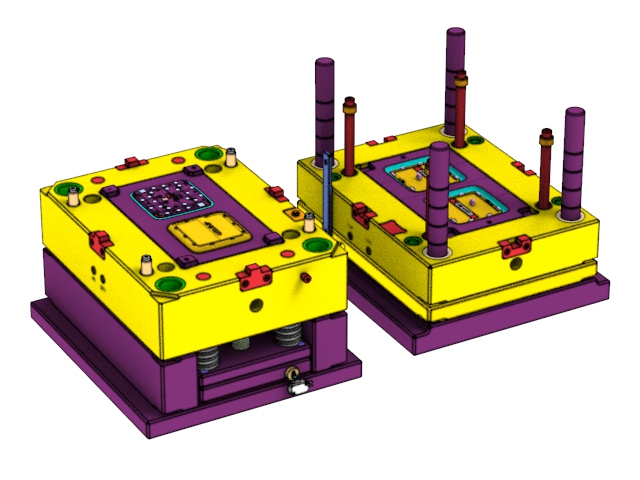

Display diagram
