Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

Name: Medical Instrument PN1797 14 Twoplates mold Cold runner No21065B
Brand: Chitwing
Price: 1 USD

China Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B wholesale

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Design software : 3D:UG 4.0, 2D:CAD

Mould life : ≥500000 shots

Surface finish : SPI B-2

Part material : PC

Part size : 8.24 X 8.21 X 2.72 mm

Part weight : 0.22g

Contact Now

Medical Instrument PN-1797 (1*4)

No.21065

(1) LKM standard
(2) Standard mold base P/N: CI2025.507070

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

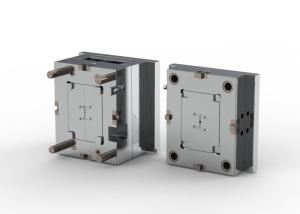

The mold has dimensions of 250mm in length, 250mm in width, and 251mm in height. It is a

two-plate mold with a side gate and cashew gate, allowing for automatic part separation during

mold opening. The mold offers a short cycle time, easy filling, smooth demolding, and low cost,

meeting customers' cost-effective requirements. The mold life can reach up to 500k shots.

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

The mold has dimensions of 250mm in length, 250mm in width, and 251mm in height. It

features a cold runner system and is compatible with an injection molding machine (IMM)

tonnage of 100 tons. The mold has a net weight of 94 kg and its surface is polished to

SPI B-2 standards. The injection-molded part weighs 0.22g, is made of PC material, and has

dimensions of 8.24 x 8.21 x 2.72mm. The cavity and core steel are made of 1*4/S136 mold

steel, which is hardened.

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

Greatly improve the surface smoothness,

anti-wearing and anti-corrosion performance

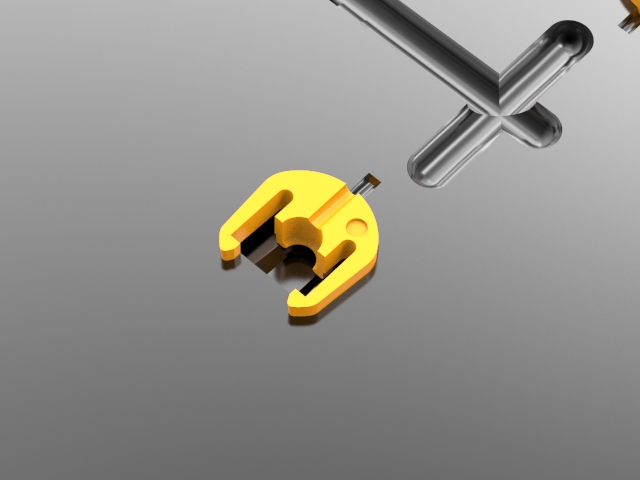

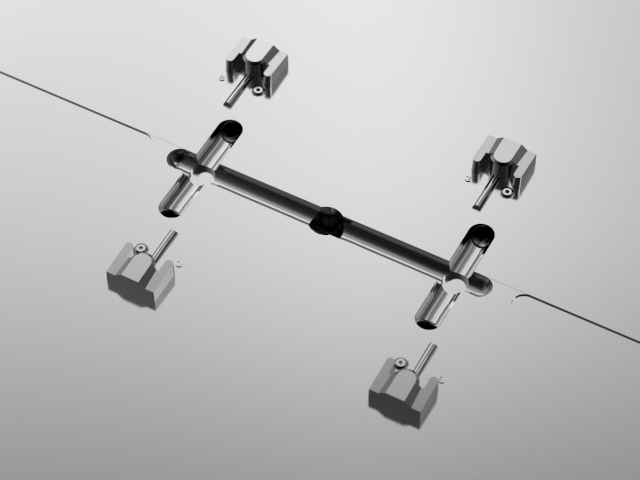

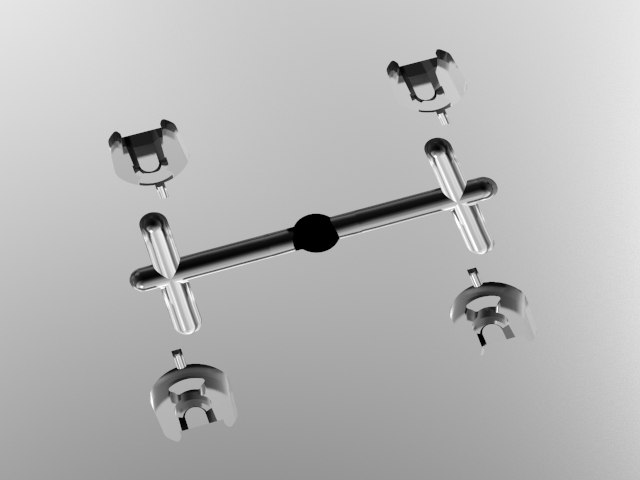

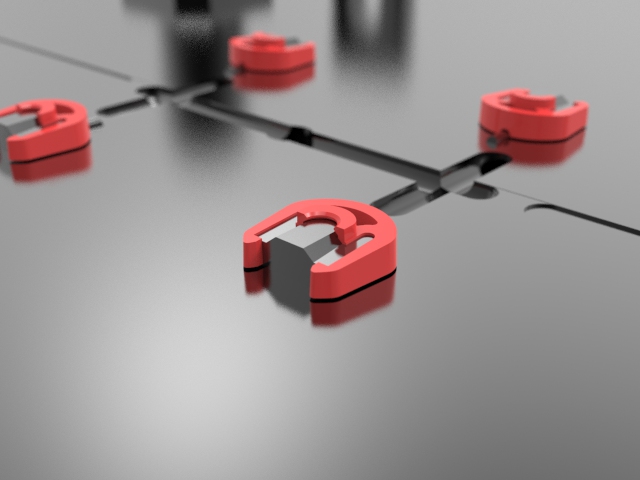

Display diagram

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B Images
