Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: Transparent Medical Instrument PN1797 14 Twoplates mold Cold runner No21065B
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Standard mold base P/N : CI2025.507070

Type : Two-plates mold

Gate : Cashew gate

Part material : PC

Contact Now

Transparent Medical Instrument PN-1797 (1*4)

No.21065-B

L250 | W250 | H251

Net weight: 94 kg Standard mold base P/N: CI2025.507070
Standard: LKM

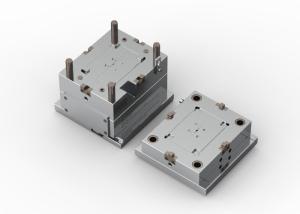

This two-plate mold features a cashew gate for efficient internal filling, resulting in a

short cycle time, rapid filling, minimal gate marks, smooth demolding, and low cost. It is

suitable for long-term, stable mass production, and the molded parts are of high quality

without burrs.

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

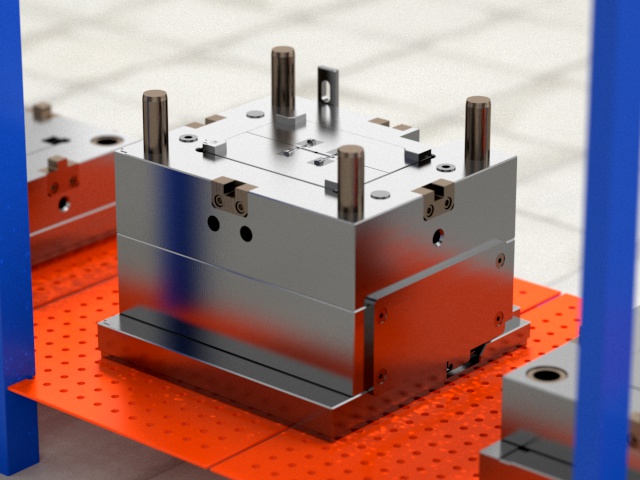

The surface finish is polished to SPI B-2, using hardened 1*4/S136 steel for the cavity and

core. This greatly enhances surface smoothness, wear resistance, and corrosion resistance.

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

☆ Injection/runner type:cold runner
☆ IMM tonnage:100T

☆ Tool life:500k shots

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B

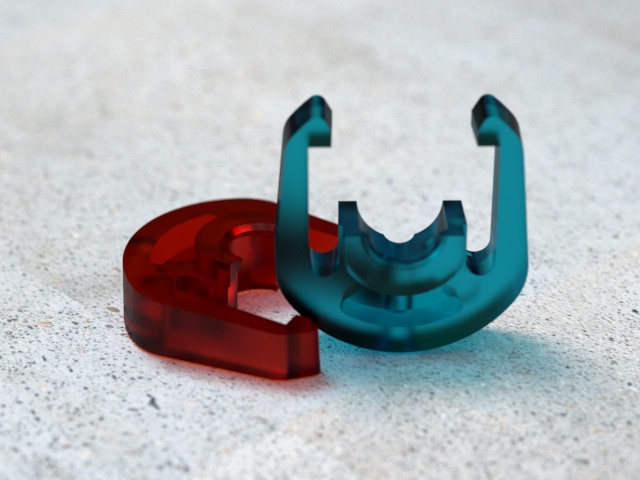

☆ Part material: PC
☆ Part size: 8.24 X 8.21 X 2.72 mm
☆ Part weight: 0.22g

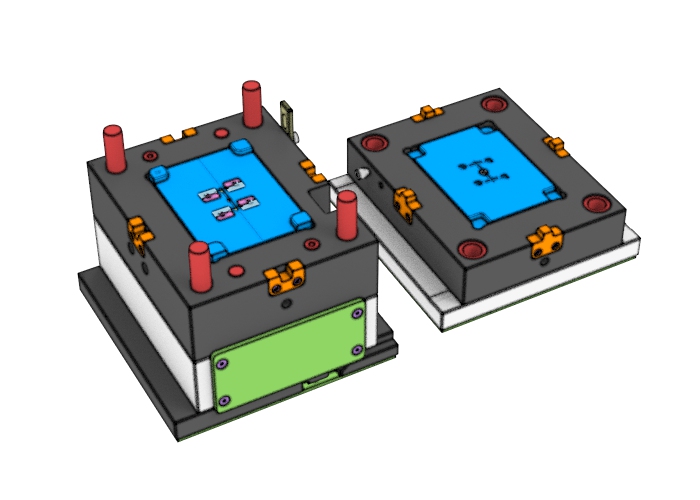

Display diagram

Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B Images
