OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1692 (1*4) No.21067-B

Name: OEM ODM Precision Injection Molding amp Transparent Medical Instrument PN1692 14 No21067B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1692 (1*4) No.21067-B wholesale

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Type : Two-plates mold

IMM Tonnage : 100 T

Size : 250.000 X 250.000 X 251.000

Mold Weight : 94kg

Part material : PP+40% GF

Gate : side gate

Injection/Runner Type : Cold Runner

Standard : LKM

Net weight : 94kg

Contact Now

Transparent Medical

Instrument PN-1692 (1*4)

No.21067-B

☆ [Standard mold base P/N]: CI2025.507070

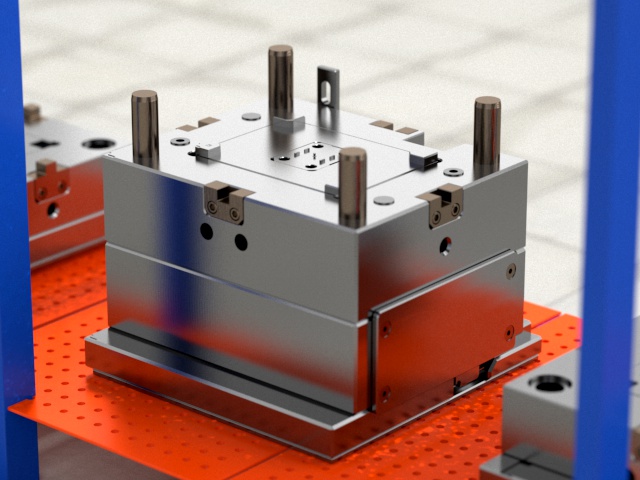

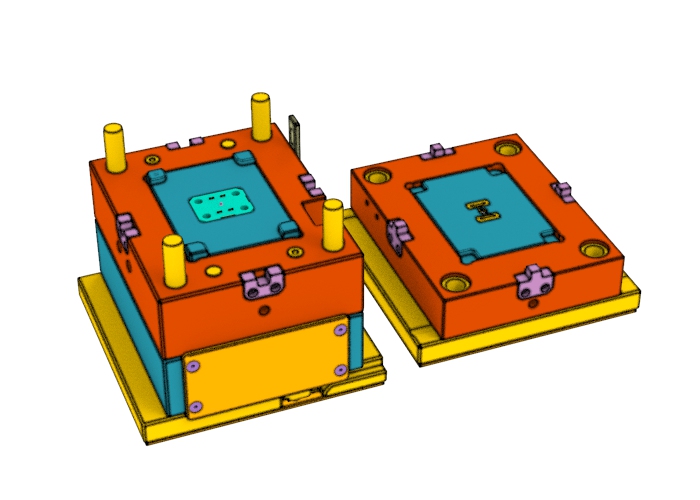

This product is a two-plate mold with a side gate. It is designed for injection molding using PP+40% GF material. The injection system utilizes a cold runner. The mold is manufactured according to the LKM standard. The net weight of the mold is 94 kg.

Length

250

Width

250

Height

251

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1692 (1*4) No.21067-B

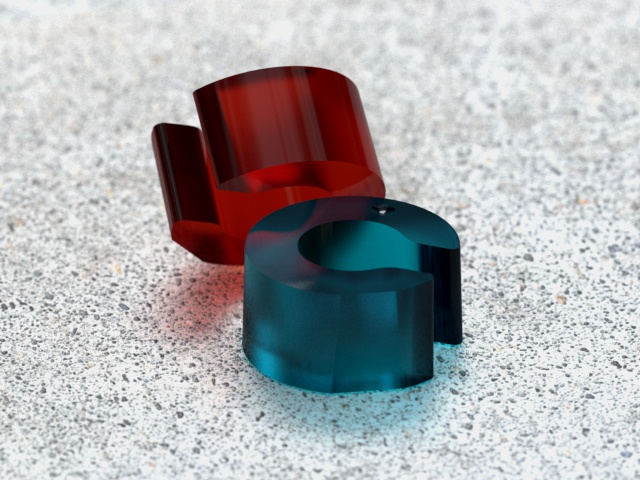

The surface of this product is polished to SPI B-2 standard to enhance mold glossiness. The cavity and core of the mold are hardened with 1*4/S136 steel, providing higher hardness, anti-corrosion, and anti-wearing performance. It is suitable for use with a 100T injection molding machine. The weight of the injection part is 0.01g, and its dimensions are 3.34 X 3.47 X 1.72mm.

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1692 (1*4) No.21067-B
