OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B

Name: OEM ODM Precision Injection Molding amp Transparent Medical Instrument PN2059 14 No21068B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B wholesale

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 300.000 X 271.000

IMM Tonnage : 100T

Mold Weight : 141kg

Mold base : Standard (CI2530.508080)

Standard : LKM

Injection/Runner Type : Cold runner

Design software : 3D-UG 4.0/ 2D-CAD

Mould life : 500，000 shots

Contact Now

Transparent Medical Instrument PN-2059 (1*4)

No.21068-B

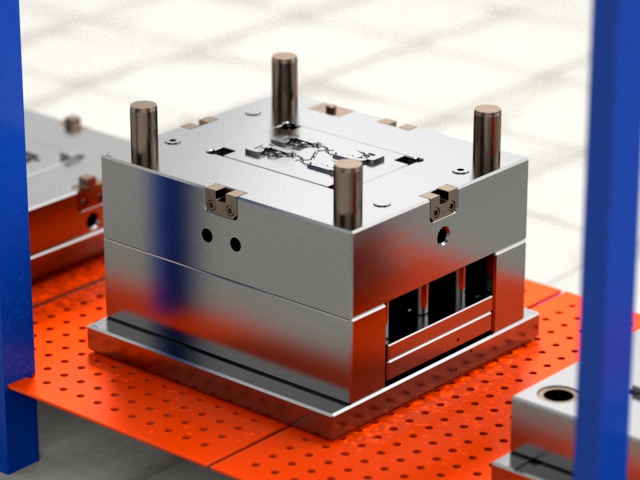

The profile picture has a size of 300x300x271mm and adheres to the LKM standard.

The mold base used is the standard CI2530.508080.

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B

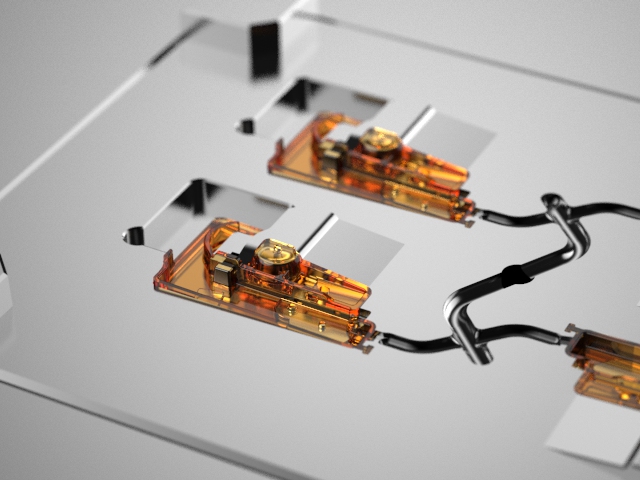

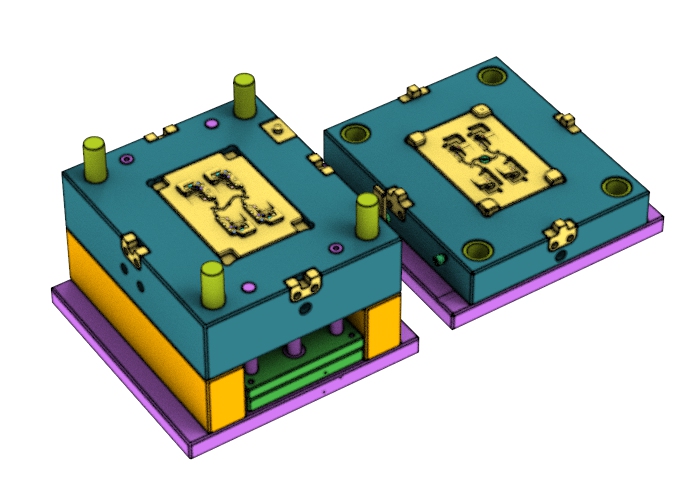

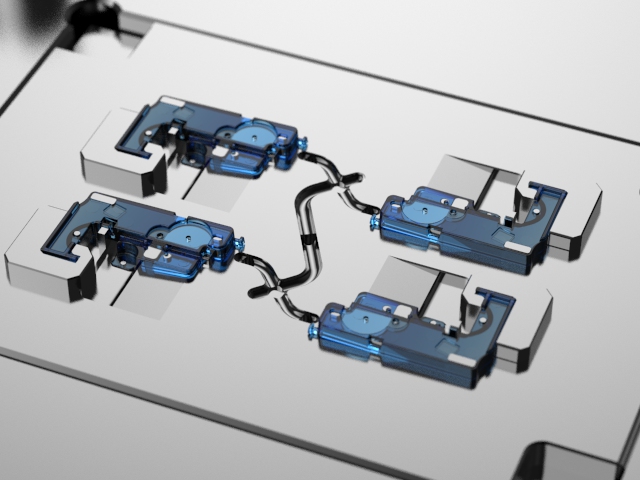

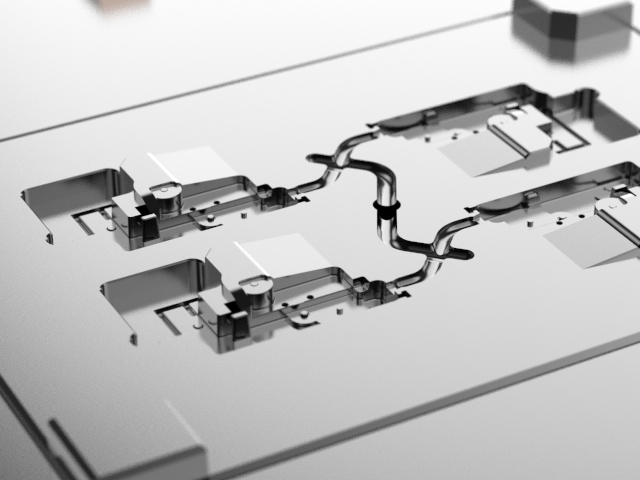

The two-plate mold with a side gate has a weight of 141 kg and requires a 100T injection molding machine (IMM) tonnage. It is designed for molding PC, which has poor fluidity and requires high-pressure injection. The mold features a two-plate structure and side gate, resulting in a short cycle time, minimal material loss, and easy processing. The cavity and core are made of hardened steel (1*4/S136) and have a surface finish of SPI A3.

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B

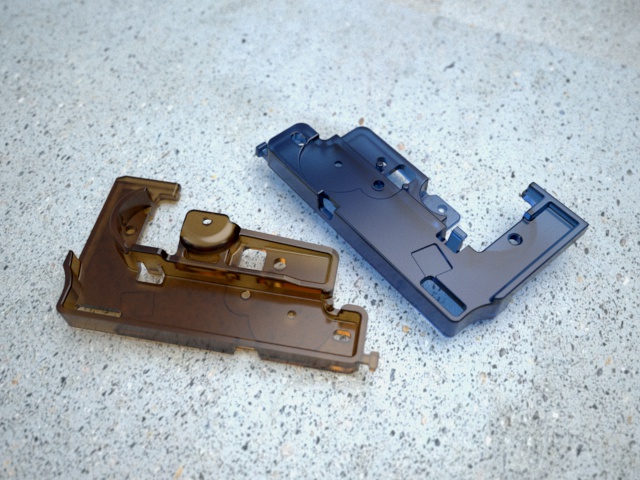

☆ [Part size]: 22.20 X 37.08 X 6.75mm

☆ [Part weight]: 0.83g

OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B

Display diagram
