OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-2044 (1*4) No.21072-B

Name: OEM ODM Precision Injection Molding amp Transparent Instrument PN2044 14 No21072B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-2044 (1*4) No.21072-B wholesale

Brand Name : Chitwing

Model Number : CWM21072 Instrument PN-2044 -B

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 102kg

Standard : LKM

Design software : <3D:UG 4.0>/ <2D:CAD>

Mould life : 500，000 shots

Runner : Cold runner

Gate : Cashew gate

Contact Now

Transparent Instrument PN-2044 (1*4)

No.21072-B

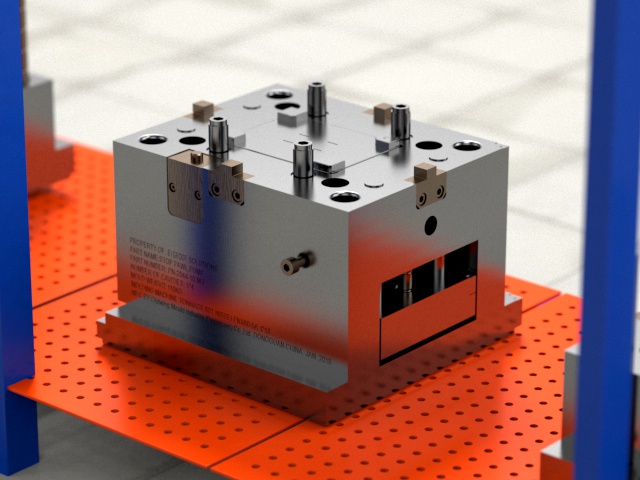

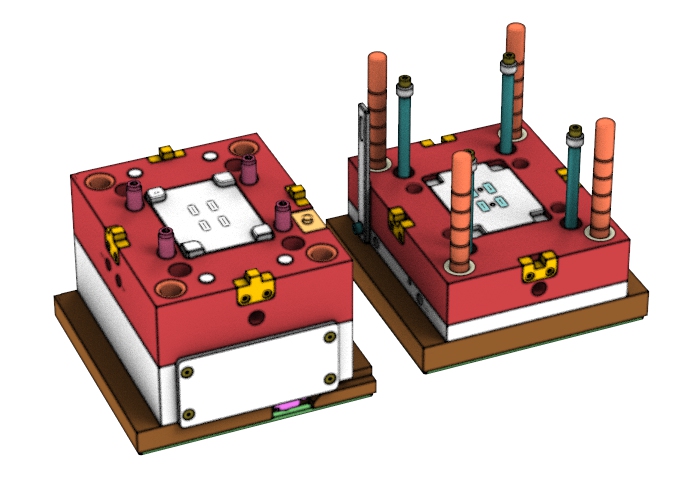

This product utilizes a standard mold base (CI2025.507070) adhering to the LKM standard. The mold has dimensions of [L] 250mm, [W] 250mm, and [H] 251mm. It has a weight of 102 kg and requires a 100T injection molding machine (IMM) tonnage. The gate used is a cashew gate, which is suitable for TPEE material with good toughness and allows for self-degating.

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-2044 (1*4) No.21072-B

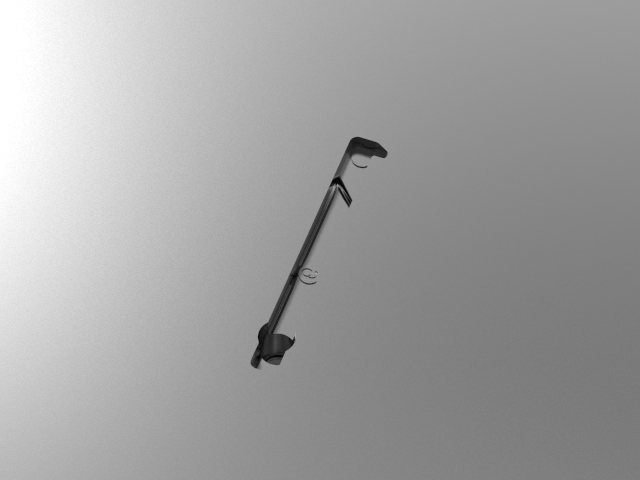

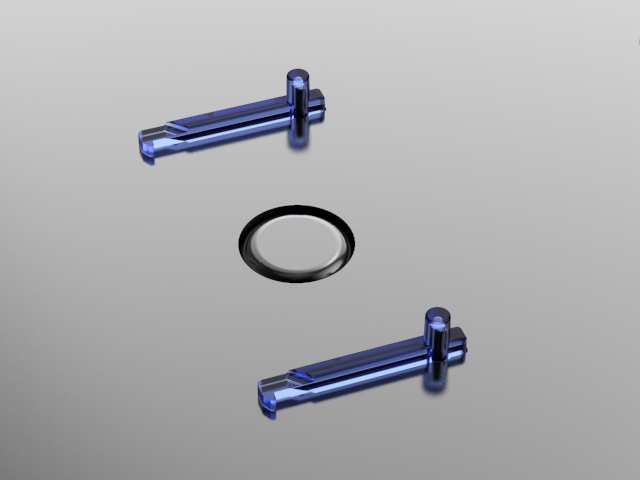

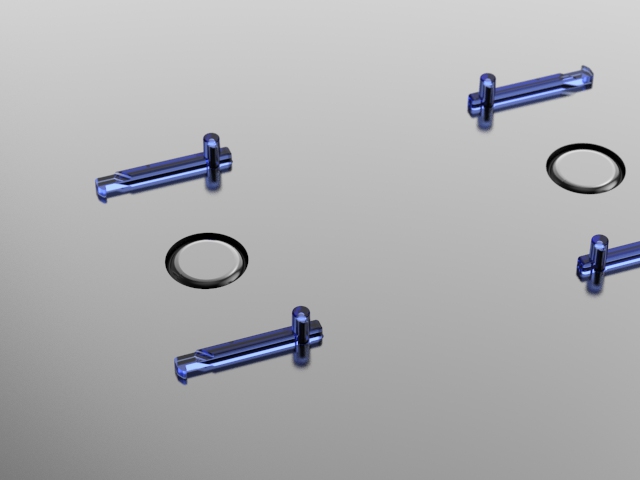

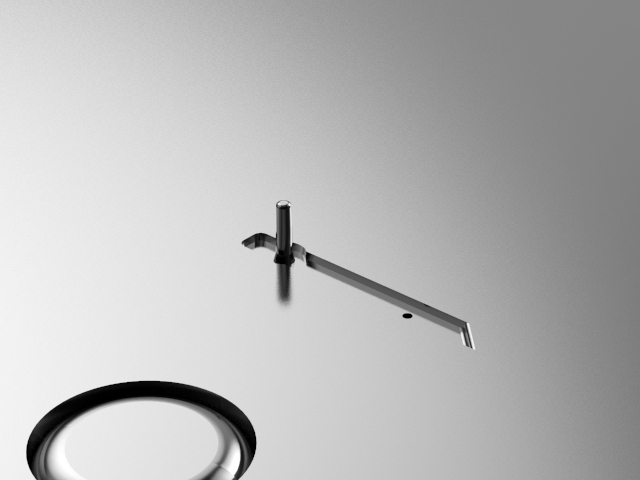

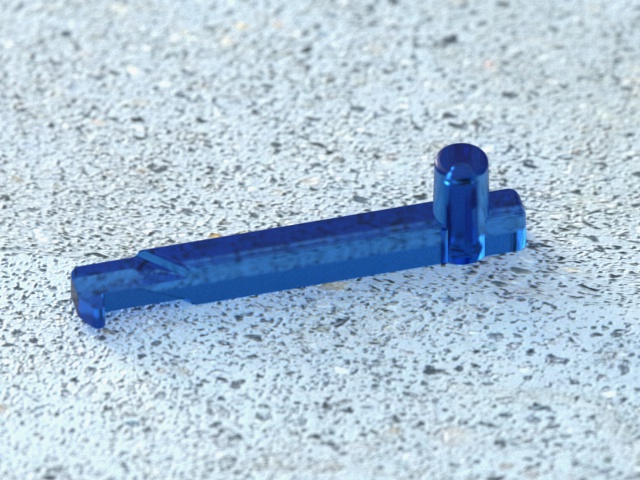

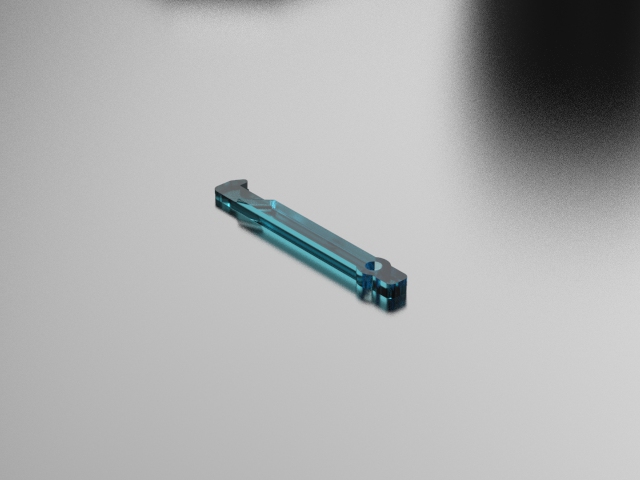

This product utilizes a cold runner system for injection/runner type. It is a two-plate mold with a simple structure and easy operation, meeting the requirements of automatic demolding. The mold is designed to minimize failures, have a long tool life, short cycle time, and low cost. The injection part is made of TPEE material and has a weight of 0.01g. The part size measures 1.64 X 10.37 X 2.65mm.

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-2044 (1*4) No.21072-B

The cavity of this product is made of hardened steel (1*4/S136), as well as the core. The surface of the mold is polished to SPI-B1 standard. The polishing and hardening processes improve the hardness, anti-wearing, anti and-corrosion performance of the mold. The tool life is rated up to 500k shots.

Display diagram

Product Tags:

Transparent Instrument Two Plates Mold

Transparent Instrument Precision Injection Molding
