OEM / ODM ： Precision Injection Molding & Instrument PN-1822 (1*2) No.21073

Name: OEM ODM Precision Injection Molding amp Instrument PN1822 12 No21073
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Instrument PN-1822 (1*2) No.21073 wholesale

Brand Name : Chitwing

Model Number : CWM21073 Instrument PN-1822

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 266.000

IMM Tonnage : 100T

Mold Weight : 99kg

Runner Type : Cold runner

Injection Type : Cold runner

Gate : cashew gate

Type : Two-plates mold

Steel of cavity and core : harden with 1*2/S136

Contact Now

Instrument PN-1822 (1*2)

No.21073

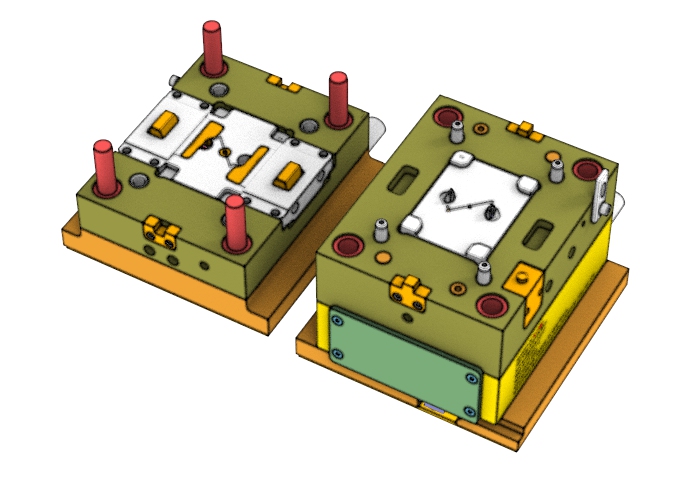

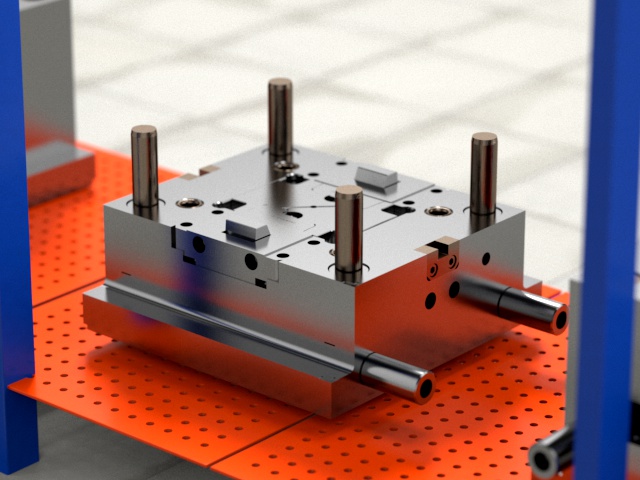

This product utilizes mold standard a base (CI2025.507070) adhering to the LKM standard. The mold has imensions of [L] 250mm, [W] 250mm, and [H] 266mm. It has a net weight of 99 kg and requires a 100T injection molding machine (IMM) tonnage.				Slide

				1

OEM / ODM ： Precision Injection Molding & Instrument PN-1822 (1*2) No.21073

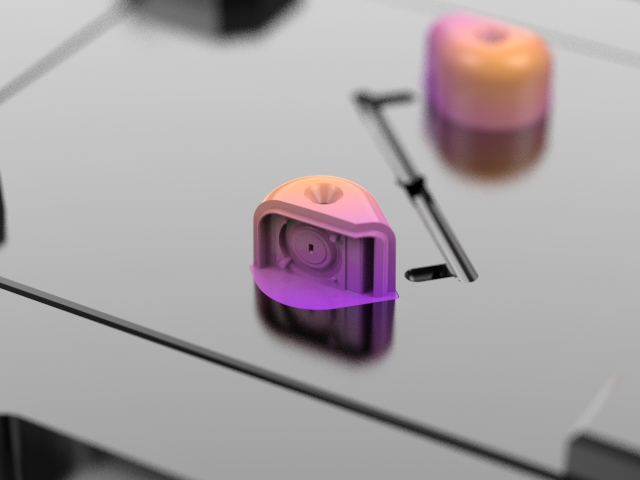

This product is a two-plate mold with a cashew gate, offering a low cost and self-degating capability. It features a cold runner system, minimizing the presence of cold slugs. The mold design ensures clear details on the molded parts, without any flow marks or gas marks.

OEM / ODM ： Precision Injection Molding & Instrument PN-1822 (1*2) No.21073

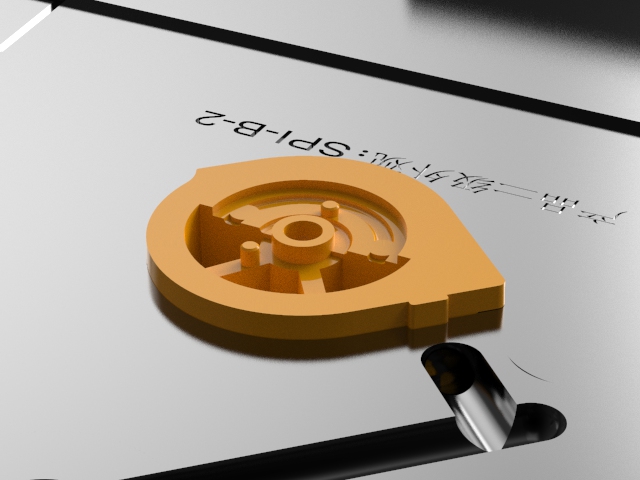

[Surface finish]:
① Partial surfaces polished to SPI B-2
② Partial surfaces polished with MT11003 (RMS 60)
③ Partial surfaces polished to SPI B-1
④ Partial surfaces polished to SPI A-2

OEM / ODM ： Precision Injection Molding & Instrument PN-1822 (1*2) No.21073

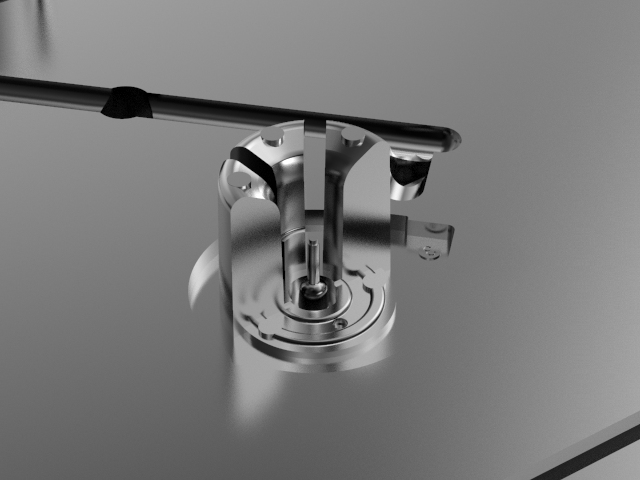

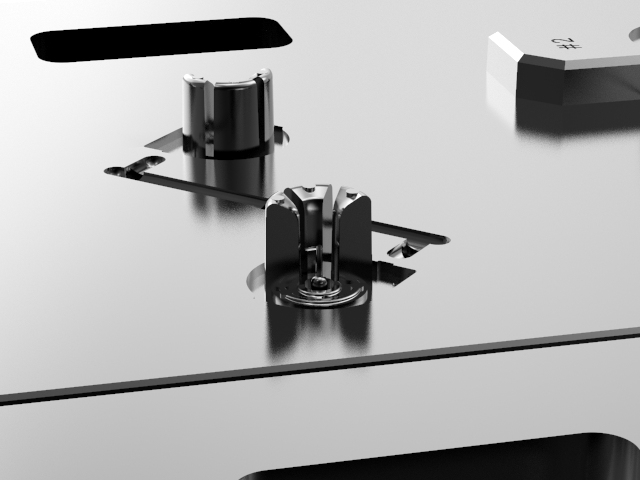

The mold has a higher glossiness, resulting in smoother molded parts, and the cavity has improved anti-wearing performance. The cavity and core of the mold are hardened with 1*2/S136 steel.

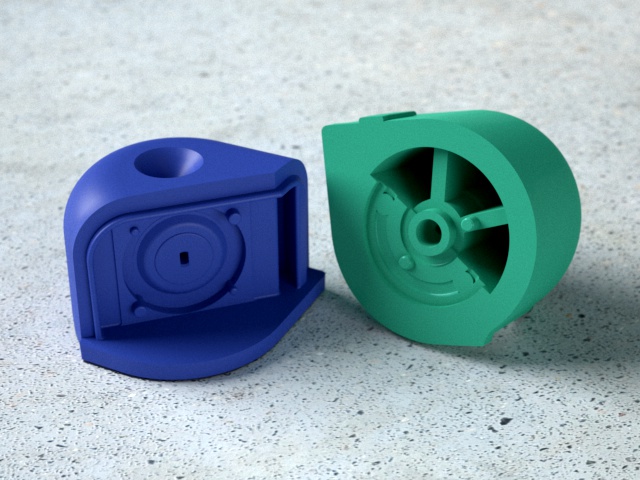

The part material is PC, with a weight of 1.36g. The part size measures 15.87x19.02x11.93mm.

Display diagram
