OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B

Name: OEM ODM Precision Injection Molding amp Transparent Instrument PN1822 12 No21073B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B wholesale

Brand Name : Chitwing

Model Number : CWM21073 Instrument PN-1822 -B

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 266.000

IMM Tonnage : 100T

Mold Weight : 99kg

Mold base : Standard mold base CI2025.507070

Standard : LKM

Slide : 1

Type : Two-plates mold

Design software : 3D:UG 4.0, 2D:CAD

Mould life : ≥500000 shots

Contact Now

Transparent Instrument PN-1822 (1*2)

No.21073-B

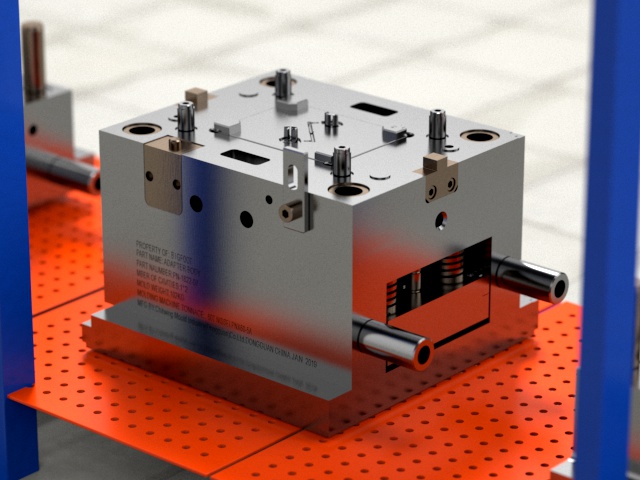

This product utilizes standard a mold base (CI2025.507070) adhering to the LKM standard. The mold has dimensions of [L] 250mm, [W] 250mm, and [H] 266mm. It features 1 slide and has a net weight of 99 kg.

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B

This product is a two-plate mold with a cashew gate and utilizes a cold runner system. It requires a 100T injection molding machine (IMM) tonnage. The cavity and core of the mold are made of hardened steel (1*2/S136). The surface finish of the mold is as follows:
1.Partial surfaces are polished to SPI B-2 standard.
2.Partial surfaces are polished with MT11003 (RMS 60).
3.Partial surfaces are polished to SPI B-1 standard.
4.Partial surfaces are polished to SPI A-2 standard

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B

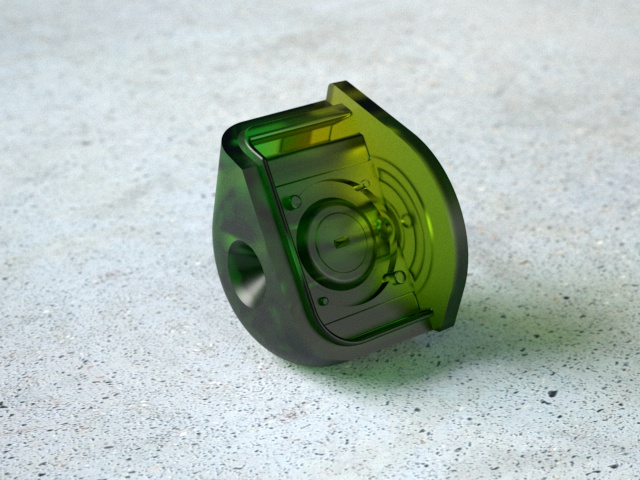

The injection part is product this of made of PC material, with a net weight of 1.36g. The part size measures 15.87x19.02x11.93mm. The tool life of the mold is rated for 500k shots.

OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B

Display diagram
