OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21872-B

Name: OEM ODM Precision Injection Molding amp Transparent Clamshell Phone Back Cover 11 No21872B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21872-B wholesale

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 350.000 X 331.000

Mold Weight : 254kg

Features : 4 slides and 1 lifter

Surface finish : VDI27#

Design software : 3D-UG 4.0/ 2D-CAD

Mould life : ≥500000 shots

Contact Now

Transparent Clamshell Phone Back Cover (1*1)

No.21872-B

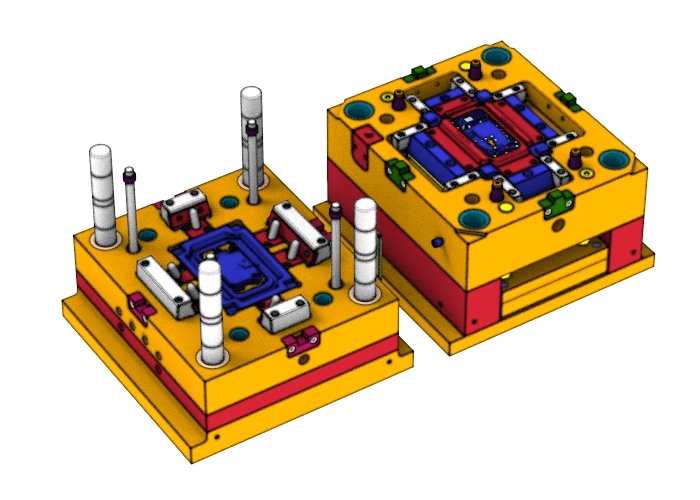

This three-plates mold, manufactured according to the LKM mold standard with the mold base P/N FCI3035 609080, offers exceptional performance and versatility. With a compact size of 350350331mm and a net weight of 254kg, it is suitable for a wide range of applications.

OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21872-B

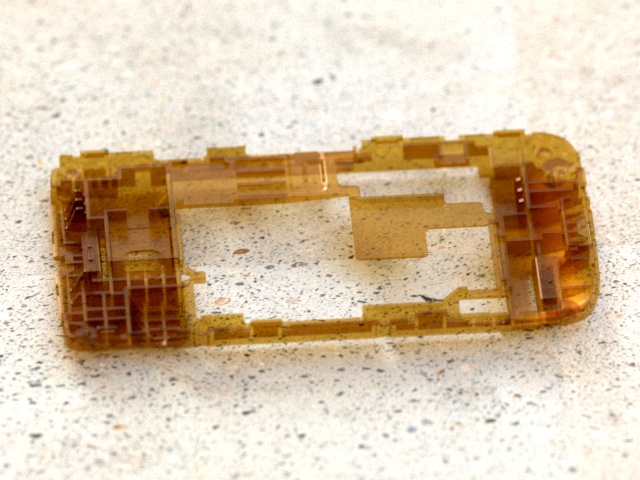

The mold features a pin point gate for precise injection control and is constructed with hardened steel (1*1/S136) for durability and high-quality molded parts. With a recommended IMM tonnage of 110T, this mold ensures exceptional precision in producing parts. Additionally, it undergoes A surface EDM with VDI27# for superior surface finish. Equipped with 4 slides and 1 lifter, it enables efficient production of complex part designs. The injection part, made from PC material, weighs 8.3g and has dimensions of 53.62X8.09X101.85mm.

OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21872-B

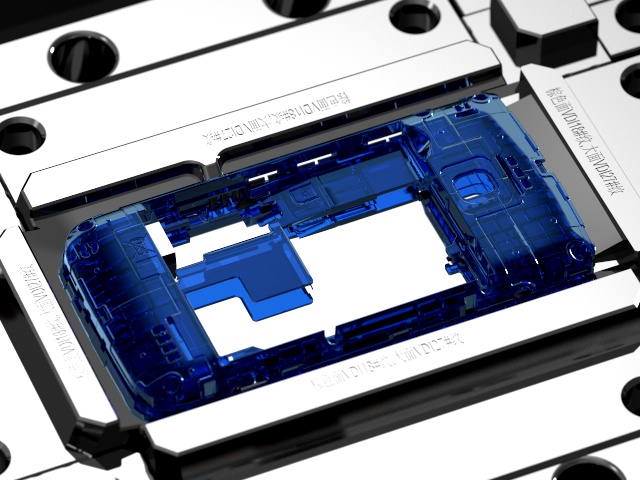

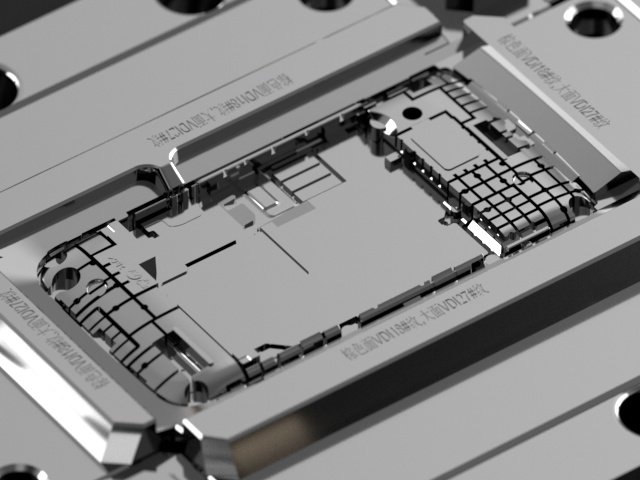

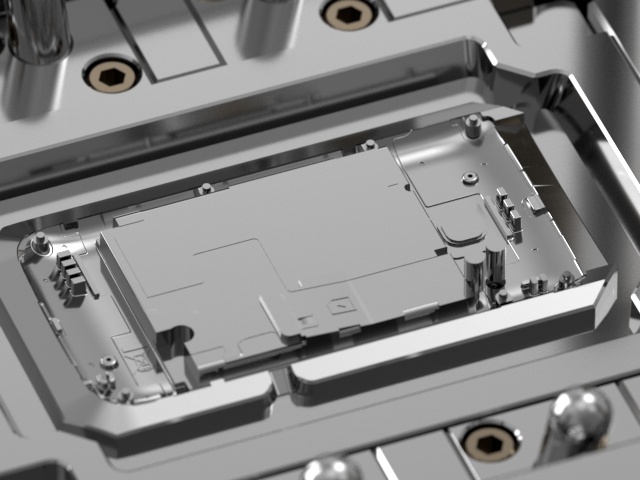

Display diagram
