OEM / ODM ： Precision Injection Molding & Back Cover (1*1) No.22447-B

Name: OEM ODM Precision Injection Molding amp Back Cover 11 No22447B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Precision Injection Molding & Back Cover (1*1) No.22447-B wholesale

Brand Name : Chitwing

Model Number : Phone Case

Certification : ISO 9001:2015

Place of Origin : India

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400.000 X 450.000 X 421.000

IMM Tonnage : 140T

Mold Weight : 470kg

Mould material : Harden（1*4/S136）

Mould base : LKM

Mould life : ≥500000 shots

Design software : 3D:UG 4.0, 2D:CAD

Type : Three-plates mold

Injection/runner type : Cold runner

Features : 4 slides

Contact Now

Back cover (1*1)

No.22447-B

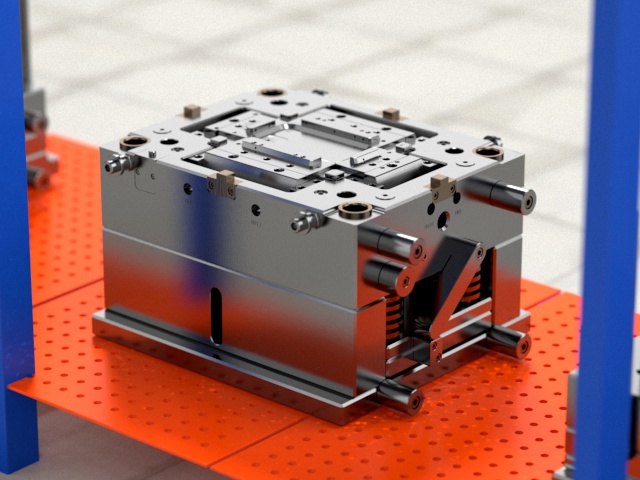

Firstly, this mold is designed with a standard mold base (FCI3545.70120120) and originates from Guangdong, China. It adheres to the LKM mold standard, ensuring high quality and reliability. The mold has a size of 400mm in length, 450mm in width, and 421mm in height, with a net weight of 470kg. It features 4 slides and 1 lifter, making it suitable for various complex molding processes.

OEM / ODM ： Precision Injection Molding & Back Cover (1*1) No.22447-B

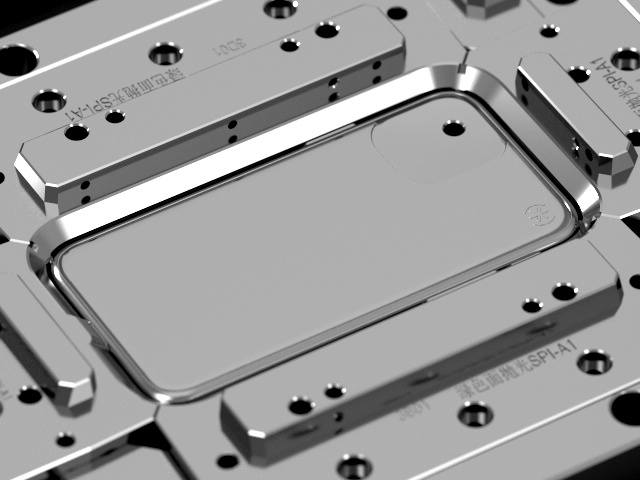

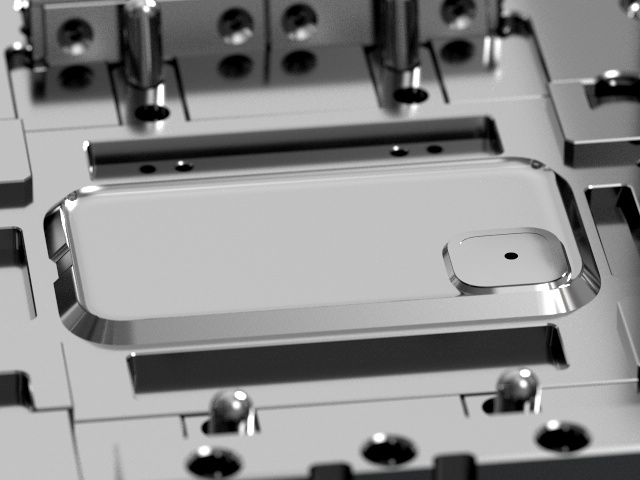

Secondly, the mold is specifically designed to fit a 140T machine, ensuring optimal performance and efficiency. It is a three-plates mold with a cold runner injection/runner type. The mold gate is a sub gate, which enhances the precision and quality of the final product. The mold has undergone surface polishing to SPI-A1 standards and is made of hardened steel for the cavity and core, ensuring durability and longevity.

OEM / ODM ： Precision Injection Molding & Back Cover (1*1) No.22447-B

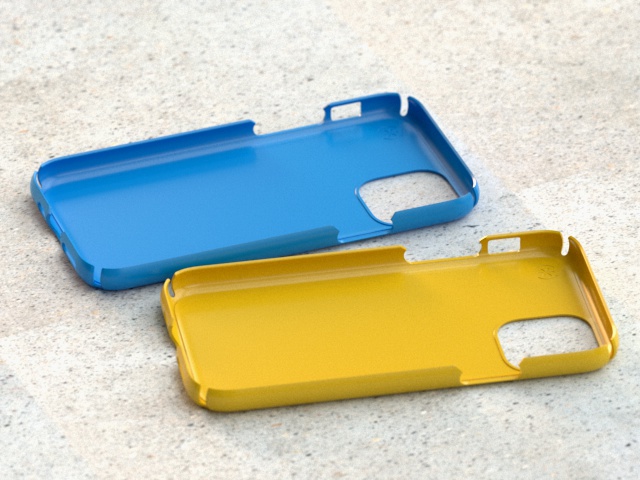

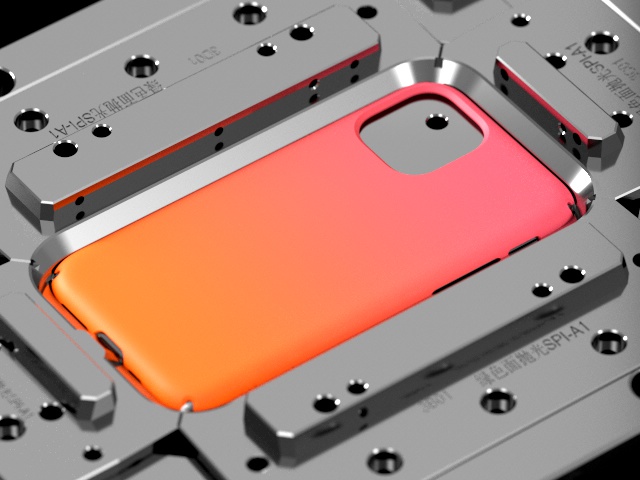

Lastly, the mold has a tool life of 500,000 shots, making it a reliable and cost-effective solution for long-term production. It is designed for injection molding with PC material, with an injection part net weight of 24g. The injection part size measures 150.4mm in length, 78.5mm in width, and 11.8mm in height. This mold is an excellent choice for manufacturing high-quality PC injection parts with precision and consistency.

OEM / ODM ： Precision Injection Molding & Back Cover (1*1) No.22447-B

Display diagram
