OEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B

Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

size : 550 X 650 X 551

IMM Tonnage : 280T

Mold Weight : 1188kg

Design software : 3D:UG 4.0, 2D:CAD

Runner : Cold runner

Mould life : ≥500000 shots

Mould base : LKM

Contact Now

Crystal Right Belt (1*2)

No.23187-B

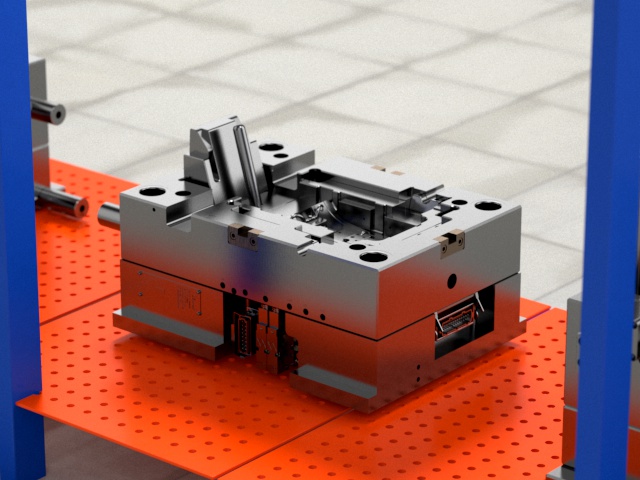

Presenting a meticulously designed mold featuring a cold runner system and a cashew gate. With dimensions measuring 550mm X 650mm X 551mm, this mold showcases exceptional craftsmanship.

OEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B

The surfaces are treated with MT11010 etching, while the cavity and core are hardened using 1*2/S136 steel, ensuring durability and longevity. Adhering to the esteemed LKM standard, this mold incorporates 1 slide and 5 lifters, facilitating smooth and precise molding actions. The surface finish is further enhanced with MT11010 etching on select surfaces, resulting in a hardness exceeding 600HV. With a net weight of 1188kg, this mold requires an impressive IMM tonnage of 280T.

OEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B

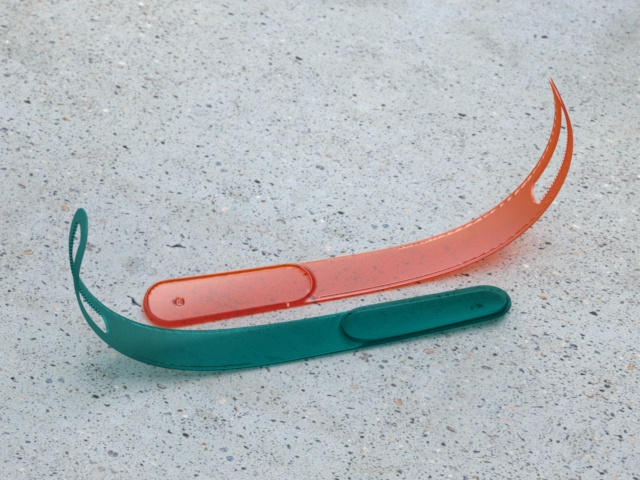

The molded part itself weighs 25.5g and boasts dimensions of 31mm X 344mm X 6.35mm.

OEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B

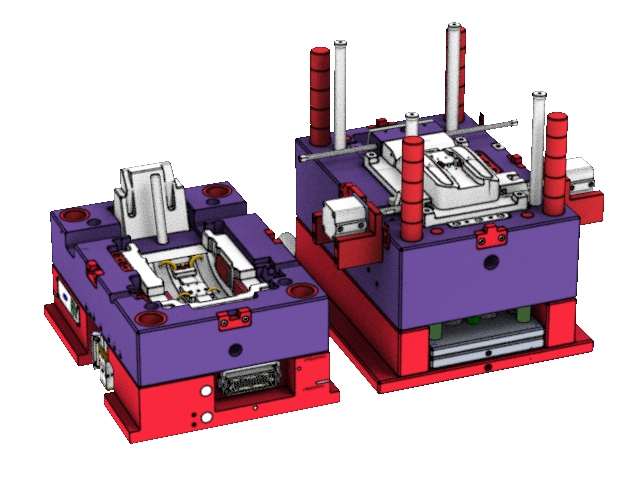

Display diagram

OEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-BOEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-BOEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-BOEM / ODM : Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B
