OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909-B

Name: OEM ODM Hot Runner Injection Molding amp Onboard Rear Housing 12 No23909B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909-B wholesale

Brand Name : Chitwing

Model Number : In-Car Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 450.000 X 550.000 X 559.000

IMM Tonnage : 220T

Mold Weight : 871kg

Standard : LKM

Type : Three-plates mold

Slide : 2

Lifter : 13

Surface finish : VDI24#/SPI-A2

Contact Now

In Car Rear Housing (1*2)

No.23909-B

Description:

Hot runner injection molding is a specialized manufacturing process used to produce plastic parts with high precision and efficiency. Unlike traditional injection molding, hot runner systems utilize heated components to maintain the molten state of the plastic material as it is injected into the mold cavity. This results in reduced cycle times, lower energy consumption, and minimized material waste. The hot runner system consists of heated manifold and nozzles, which ensure the uniform flow of the molten plastic material into the mold cavities, leading to consistent part quality and reduced production costs. Our company employs state-of-the-art hot runner technology, combined with advanced process control and monitoring, to deliver superior quality plastic parts to our clients across various industries.

Application:

digital shell
mobile phone accessories
Mouse and keyboard
Daily necessities
Precision accessories

Features:

Mold base P/N	DI4055 110100100
Standard	LKM
Mold Size	Length:450 Width:550 Height:559
Slide	4
Lifter	13
Mold net weight	871kg
IMM Tonnage	220T
Surface finish	① A surface laser with VDI24#
Surface finish	② A surface EDM with SPI-A2
Part outter surface polished, low glossiness and free of sand paper mark, and touch-friendly.
Steel of cavity & core	Harden (1*2/S136)
Harden steel for cavity and core, good hardness, anti-wearing, anti-corrosion, mass production tool life 500k shots.
This tooling with hot sprue + 3 plates pin point gate + side gate. Easy for tool build and W/O cold sprue (cost effective by saving material)

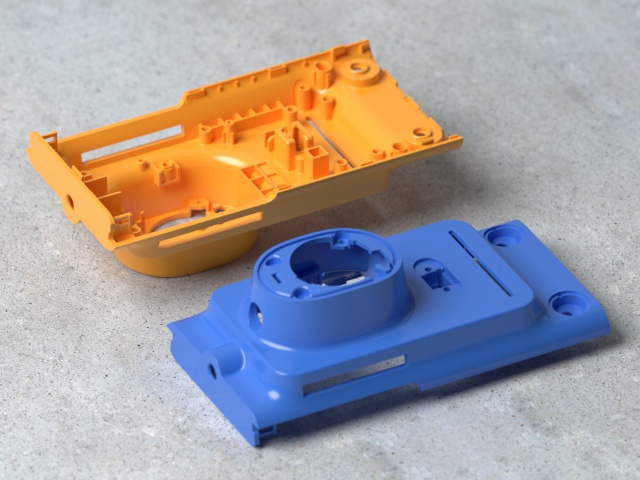

Overall size	Length 115.95
	Width 60.93
	Height 37.15
Net weight	19.95g
Part size	115.95x60.93x37.15mm

Advantage:

Hot runner injection molding is a cornerstone of our company's manufacturing capabilities, offering a multitude of advantages in the production of plastic parts. By leveraging hot runner technology, we are able to significantly reduce material waste, enhance part quality, and improve production efficiency. Our expertise in utilizing hot runner systems allows us to mold intricate part geometries, providing our clients with innovative design possibilities. Through the utilization of hot runner injection molding, we demonstrate our commitment to delivering high-quality, cost-effective, and environmentally conscious plastic manufacturing solutions.

OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909-B

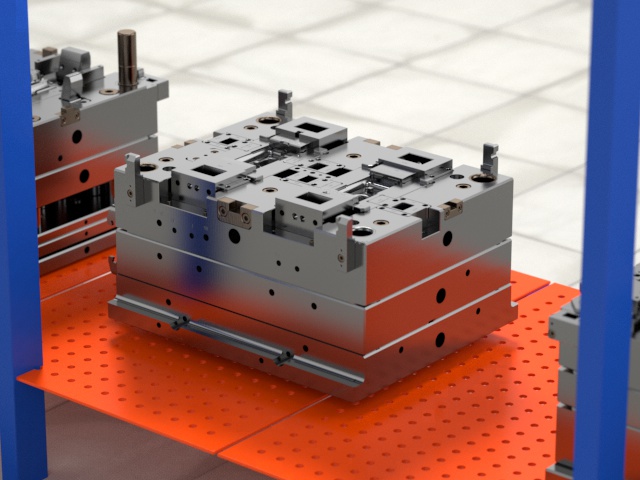

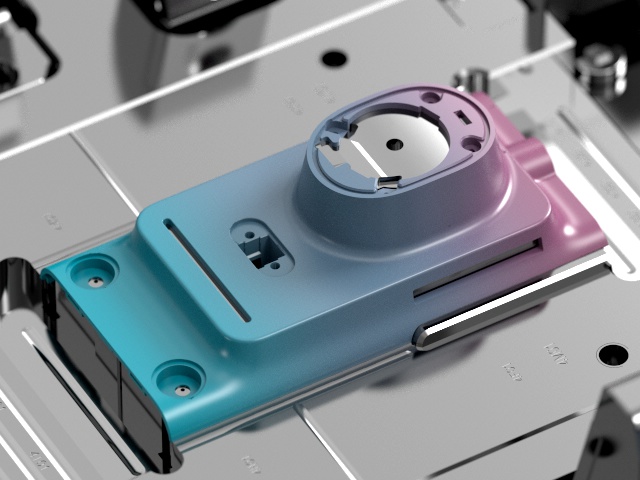

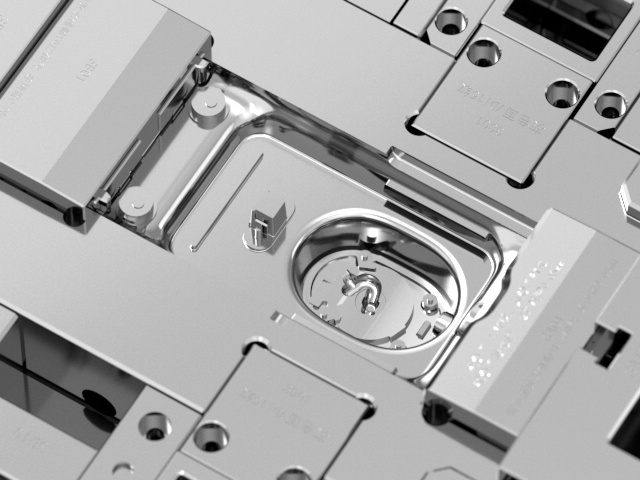

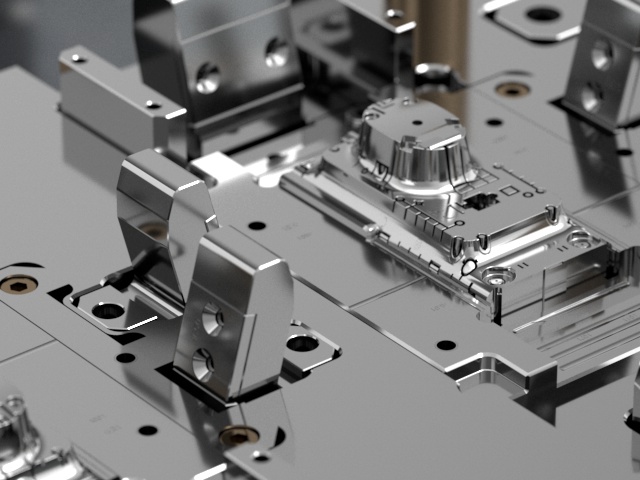

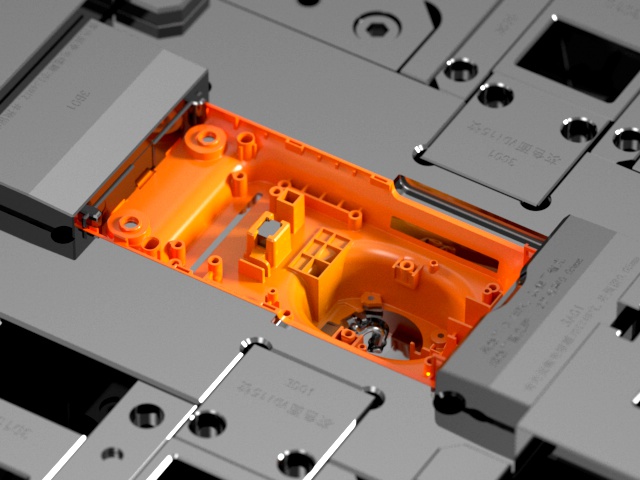

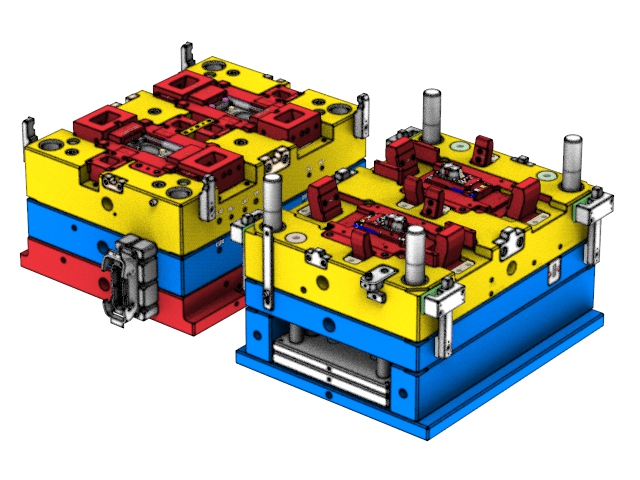

Display diagram

OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909-B

OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909-B Images
