Transparent Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C

Name: Transparent Medical Instrument PN1500 14 TwoPlates Mold Cold Runner No21062C
Brand: Chitwing
Price: 1 USD

China Transparent Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C wholesale

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Standard mold base : CI2025.507070

Standard : LKM

Part material : POM

Part net weight : 0.03g

Contact Now

Transparent Medical

Instrument PN-1500 (1*4)

No.21062-C

Description:

The two-plates mold with a cold runner system. This mold design consists of two main parts that are separated along a parting line. The cold runner system is a method of injection molding where the material for the part is kept at a lower temperature than the rest of the mold. This allows for easier processing and degating, making it suitable for mass production. The cold runner system also helps in reducing material wastage and improving the overall efficiency of the molding process.

Application:

Medical electronics
Smart wearable products
Daily products
electronic toy

Features:

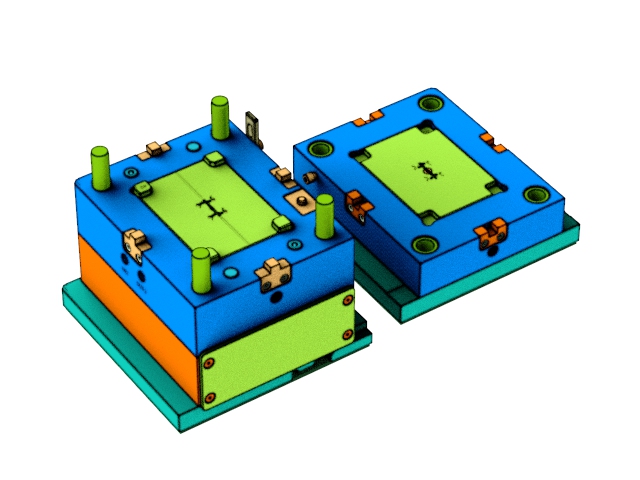

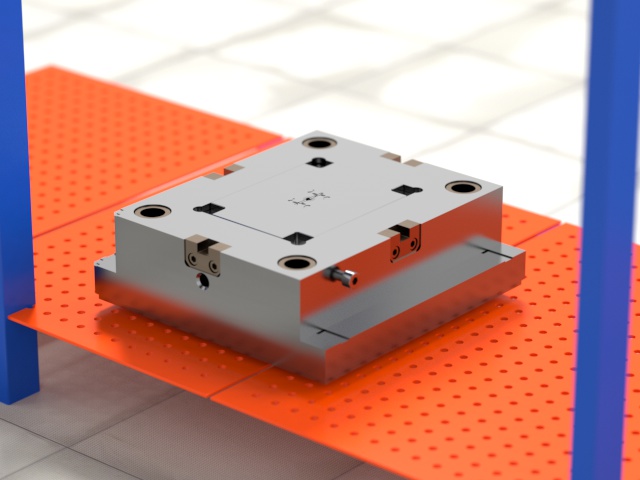

Check out the CI2025.507070 standard mold base from LKM. This mold, with dimensions of 250mm (L) x 250mm (W) x 251mm (H), sports a two-plate design with a side gate and cold runner system, making it a top choice for mass production due to its hassle-free processing and degating features. The mold surface is polished to SPI B-2 standards, boosting smoothness, hardness, corrosion resistance, and wear resistance, with a tool life of up to 500,000 shots. The cavity and core are toughened using 1*4/S136, ensuring high hardness, corrosion resistance, and wear resistance, allowing for the continuous production of high-quality parts with short cycle times and precise details, free from flow marks and gas marks.

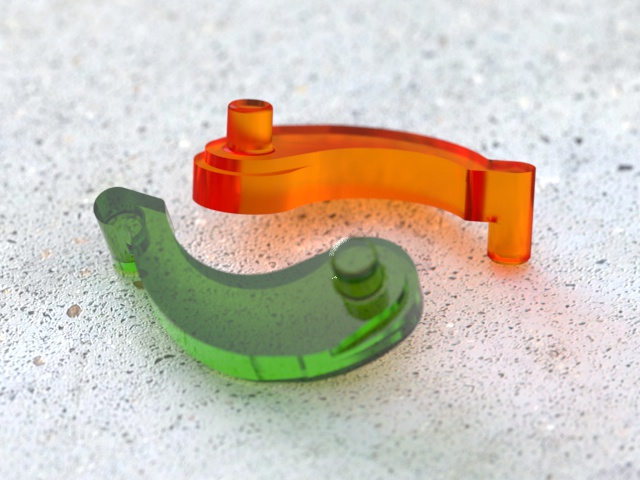

The part material used is POM, with a part size of 3.86mm x 7.78mm x 3.25mm and a part weight of only 0.03g. The mold net weight is 94kg, and it is suitable for an injection molding machine with a tonnage of 100T.

Advantage:

We specialize in producing two-plates molds with a cold runner system. These molds are tailored to streamline the efficient and cost-effective mass production of plastic parts. The two-plates design allows for easy mold separation, while the cold runner system minimizes material waste and enhances overall production efficiency. Our meticulously crafted molds adhere to high-quality standards and are suitable for a wide array of industrial applications.

Transparent Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C

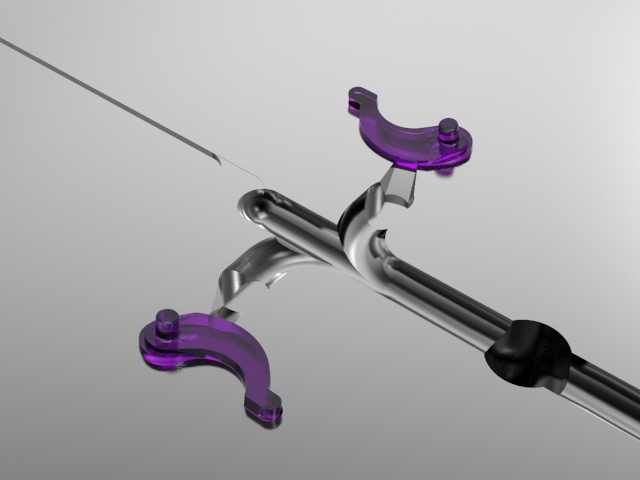

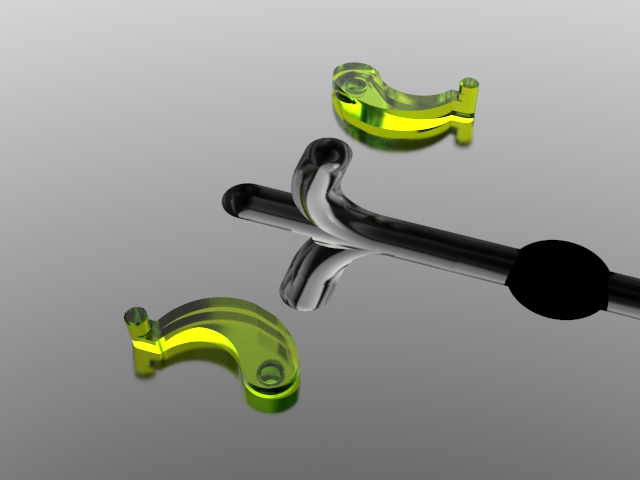

Display diagram

Product Tags:

Transparent medical device molding

medical device molding for POM

Transparent Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C Images
