Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C

Name: Medical Instrument PN1500 14 TwoPlates Mold Cold Runner No21062C
Brand: Chitwing
Price: 1 USD

China Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C wholesale

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Design software : 3D:UG 4.0, 2D:CAD

Mould life : 500000 shots

Runner : Cold runner

Standard : LKM

Part material : POM

Type : Two-plates mold

Standard mold base P/N : CI2025.507070

Contact Now

Medical Instrument PN-1500 (1*4)

No.21062-C

Description:

Presenting the two-plates mold with a cold runner system. This mold setup features two main parts that are split along a dividing line. The cold runner system is a technique used in injection molding where the material for the part is kept at a lower temperature than the rest of the mold. This setup allows for easier processing and removal of the finished parts, making it well-suited for large-scale production. Additionally, the cold runner system helps minimize material waste and enhances the overall efficiency of the molding process.

Application:

medical accessories
Smart wearable accessories
Toy components

Features:

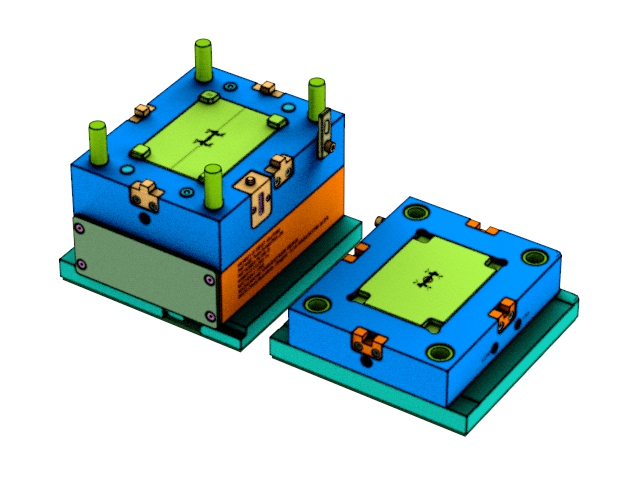

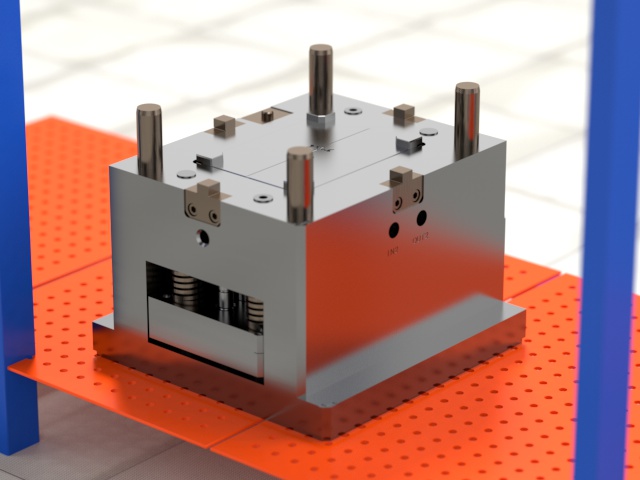

The CI2025.507070 standard mold base from LKM. This mold, measuring 250mm in length, 250mm in width, and 251mm in height, features a two-plate design with a side gate and cold runner system, making it a perfect choice for mass production due to its easy processing and degating capabilities. The mold surface is polished to SPI B-2, enhancing smoothness, hardness, corrosion resistance, and wear resistance, with a tool life of up to 500,000 shots. The cavity and core are hardened using 1*4/S136, ensuring high hardness, corrosion resistance, and wear resistance, allowing for continuous production of stable quality parts with short cycle times and precise details, free of flow marks and gas marks.

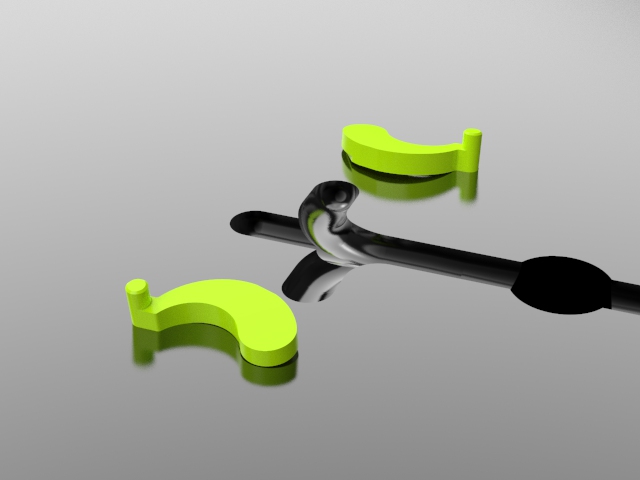

The part material used is POM, with a part size of 3.86mm x 7.78mm x 3.25mm and a part weight of only 0.03g. The mold net weight is 94kg, and it is suitable for an injection molding machine with a tonnage of 100T.

Advantage:

We specialize in manufacturing two-plates mold with a cold runner system. This type of mold is designed to facilitate efficient and cost-effective mass production of plastic parts. The two-plates design allows for easy separation of the mold, while the cold runner system helps to minimize material waste and improve overall production efficiency. Our molds are meticulously crafted to meet high-quality standards and are suitable for a wide range of industrial applications.

Medical Instrument PN-1500 (1*4) / Two-Plates Mold / Cold Runner No.21062-C

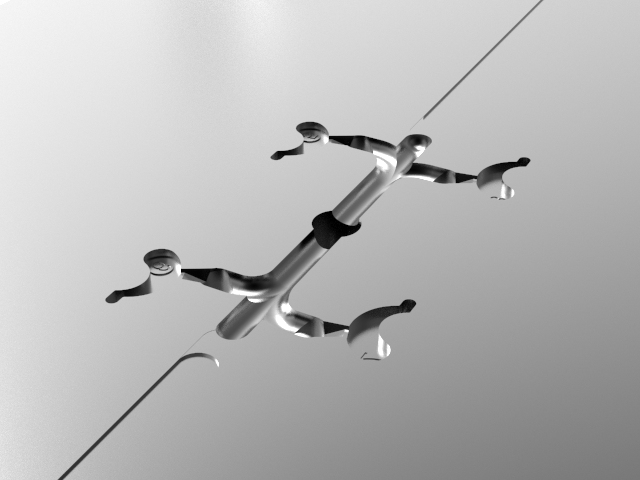

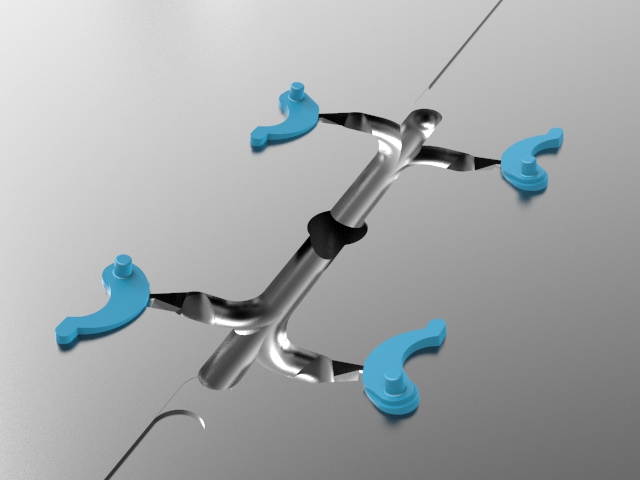

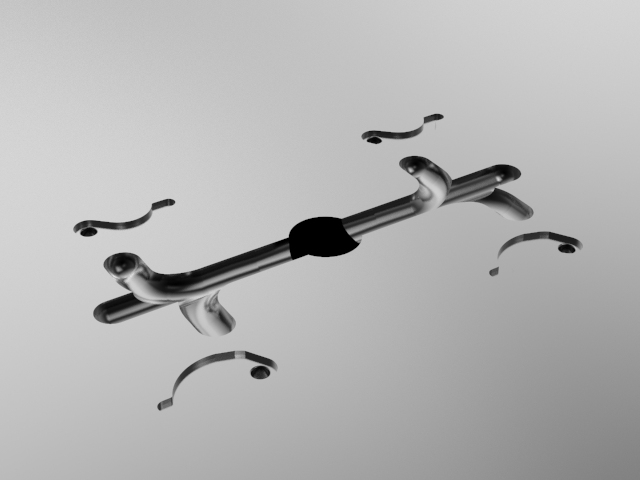

Display diagram
