Medical Instrument PN-1691 (1*4) Two-Plates Mold Cold Runner No.21063-C

Name: Medical Instrument PN1691 14 TwoPlates Mold Cold Runner No21063C
Brand: Chitwing
Price: 1 USD

China Medical Instrument PN-1691 (1*4) Two-Plates Mold Cold Runner No.21063-C wholesale

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 261.000

Part weight : 0.11g

Design software : (3D)UG 4.0/ (2D）CAD

Mould life : ≥500000 shots

Gate : Side gate

Injection type : Cold runner

Runner type : Cold runner

Contact Now

Medical Instrument PN-1691 (1*4)

No.21063-C

Description:

The Two-plates mold Cold runner is a commonly employed injection mold in the manufacturing sector. It comprises two primary plates that shape the mold cavity and core. The cold runner system denotes the technique of delivering molten material to the mold cavity without the use of a heated runner. This mold type is typically utilized for uncomplicated part geometries and aids in minimizing material wastage.

Application:

Medical electronics
Smart Life Electronics
Digital Accessories

Features:

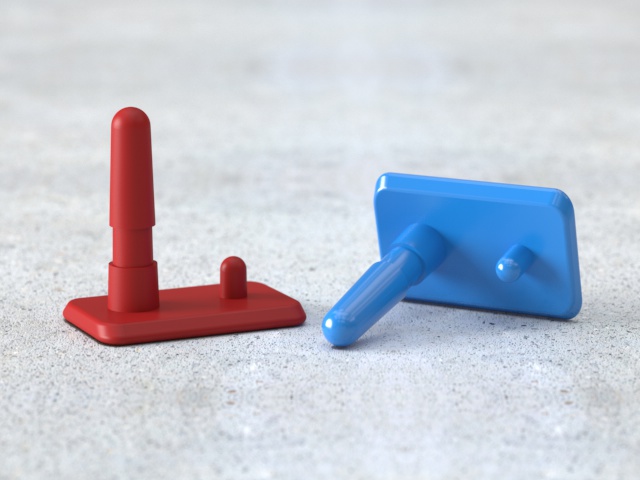

The mold is manufactured according to LKM standards, with a standard mold base P/N: CI2025.508070. It has dimensions of 250mm in length, 250mm in width, and 261mm in height. This mold incorporates 2 slides and has a net weight of 93kg. It is designed with a side gate structure. The injection molding process utilizes a 100T machine and produces parts made of PC+PET material with a net weight of only 0.11g. The dimensions of the part are 10.22 x 6.70 x 10.20mm. The mold has a tool life of 500,000 shots and employs a cold runner injection type.

Advantage

We specialize in the production of two-plates molds with a cold runner system. These molds are designed to optimize the efficient and cost-effective mass production of plastic parts. The two-plates design allows for easy mold separation, while the cold runner system helps to reduce material waste and enhance production efficiency. Our meticulously crafted molds meet the highest industry standards, ensuring reliable performance and durability.

Medical Instrument PN-1691 (1*4) Two-Plates Mold Cold Runner No.21063-C

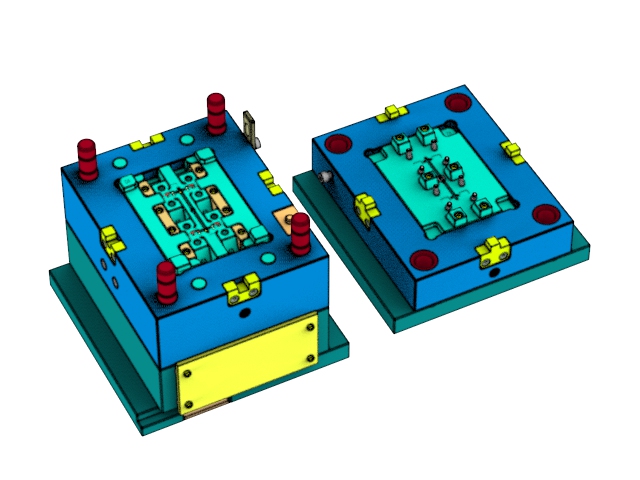

Display diagram

Product Tags:

PN-1691 medical injection moulding

Two-Plates medical injection moulding

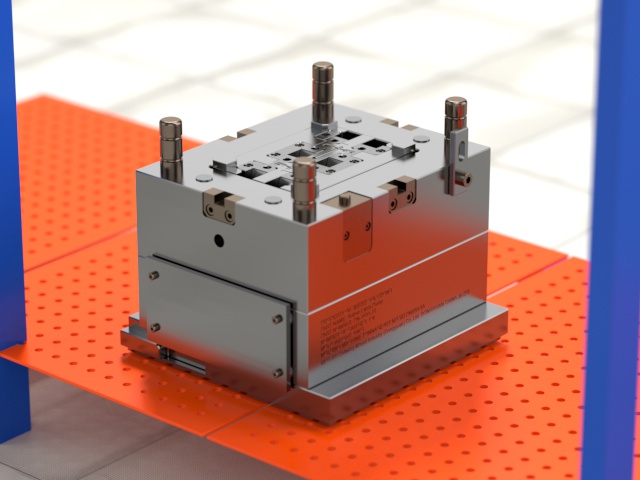

Medical Instrument PN-1691 (1*4) Two-Plates Mold Cold Runner No.21063-C Images
