OEM / ODM Earphone Terminal (1*8) No.23570-D

Name: OEM ODM Earphone Terminal 18 No23570D
Brand: Chitwing
Price: 1 USD

China OEM / ODM Earphone Terminal (1*8) No.23570-D wholesale

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 110.000 X 330.000 X 125.000

IMM Tonnage : 60T

Mold Weight : 27.54kg

Standard : LKM

Type : Two-plates mold

Slide : 2

Part material : PA

Gate : Sub gate

Design software : <3D:UG 4.0>/ <2D:CAD>

Contact Now

Earphone terminal (1*8)

No.23570-D

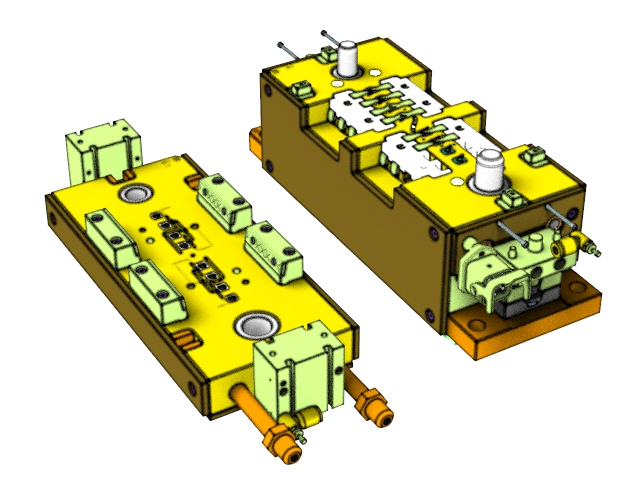

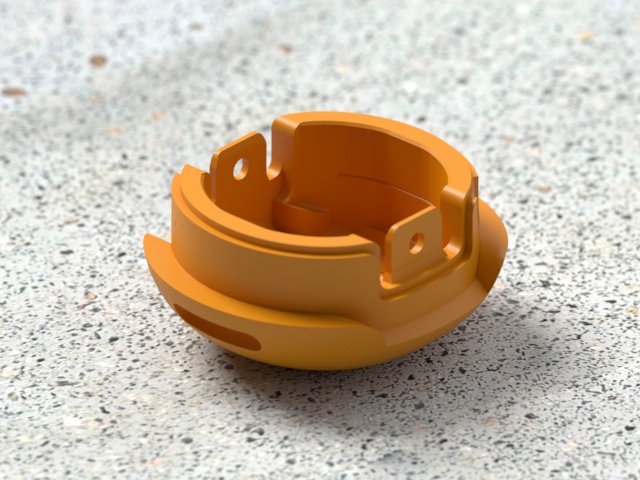

The mold dimensions of 110 X 330 X 125mm, type as a two-plates mold with a standard gate. The LKM sub gate mold has a net weight of 27.54kg, 2 slides, and cavity & core hardened with 1*8/S136. The part material/weight is PA/0.03g, with a part size of 6.21 X 5.61 X 2.91mm.

OEM / ODM Earphone Terminal (1*8) No.23570-D

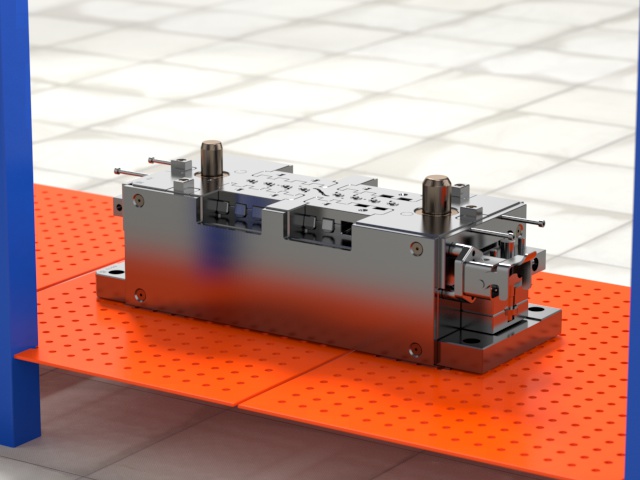

The IMM Tonnage is 60T. The two-plate mold design features a cold runner and two slides for cost-effectiveness and feasibility. The surface is polished to SPI-A3, hardened for improved smoothness, hardness, anti-wearing, and anti-corrosion properties to prevent sticking of molten PA.

OEM / ODM Earphone Terminal (1*8) No.23570-D

The molded parts exhibit short cycle times, minimized material loss, complete and smooth appearance, low cost, and high quality.

OEM / ODM Earphone Terminal (1*8) No.23570-D

Display diagram
