OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310

Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 270*465*356mm

Mold weight : 357(kg)

Features : Double-shot molding

Part material : PA (transparent)/PA + 60% GF (black)

Design software : (3D)UG 4.0/ (2D)CAD

Mould base : LKM

Contact Now

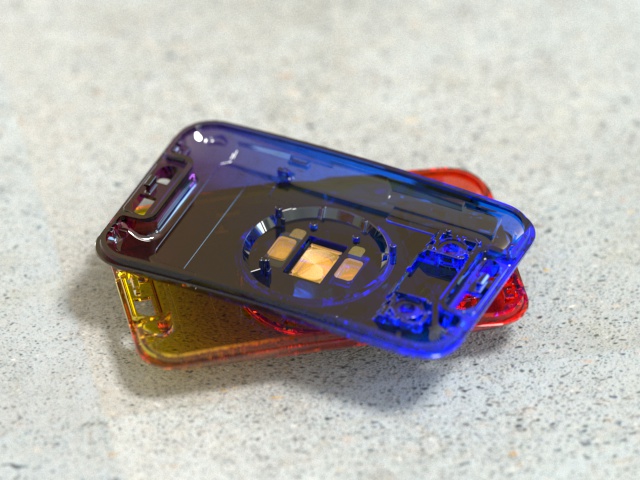

Transparent Smart Watch

Lower Housing (1*4)

No.23309 & 23310

Mold size Mold base P/N
270 X 465 X 356 FCI2735 6011080
Gate Standard
Pin point gate + submarine gate LKM
Mold life Type
500k shots Three-plates mold
Injection/runner type Features
Cold runner Double-shot molding
Mold weight IMM Tonnage
357kg 200T

OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310

OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310

Part material PA (transparent)/PA + 60% GF (black)
Part size : 26.42 X 42.24 X 5.79mm, net weight: about 2.2g/pcs
Surface finish
⑴ A surface EDM with SPI-A2
⑵ A surface EDM with SPI-B2
⑶ A surface EDM with VDI24# (Makino)
Steel of cavity & core : Harden (1*4/S136)

OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310

Display diagram

OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310OEM / ODM : Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310
