OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B

Name: OEM ODM Double Injection Molding amp Smart Watch Lower Housing No 23309 And 23310B
Brand: Chitwing
Price: 1 USD

China OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B wholesale

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 270.000 X 465.000 X 356.000

IMM Tonnage : 200T

Mold Weight : 357kg

Gate : Pin point gate + submarine gate

Mold base P/N : FCI2735 6011080

Mold life : 500000 shots

Surface finish : SPI-A2 / SPI-B2 / VDI24# (Makino)

Standard : LKM

Steel of cavity & core : Harden (1*4/S136)

Injection type : Cold runner

runner type : Cold runner

Mold features : Double-shot molding

Contact Now

Smart Watch

Lower Housing (1*4)

No.23309 & 23310-B

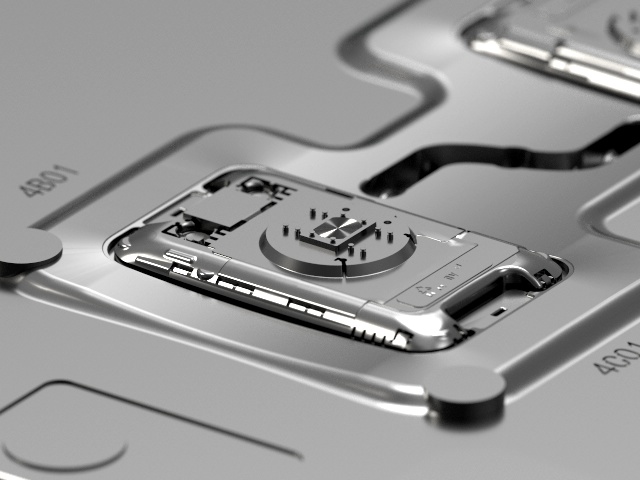

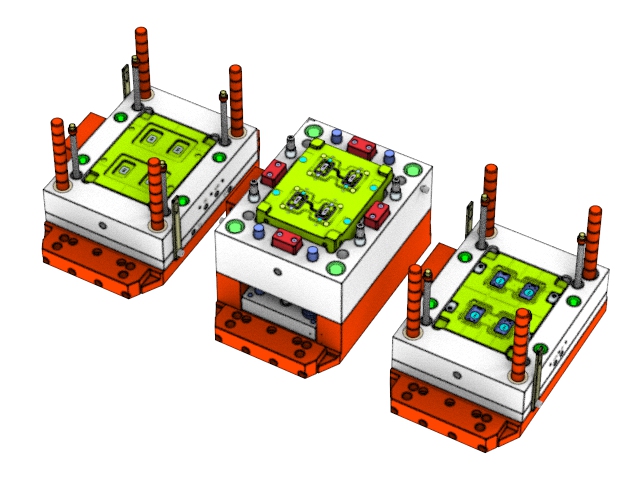

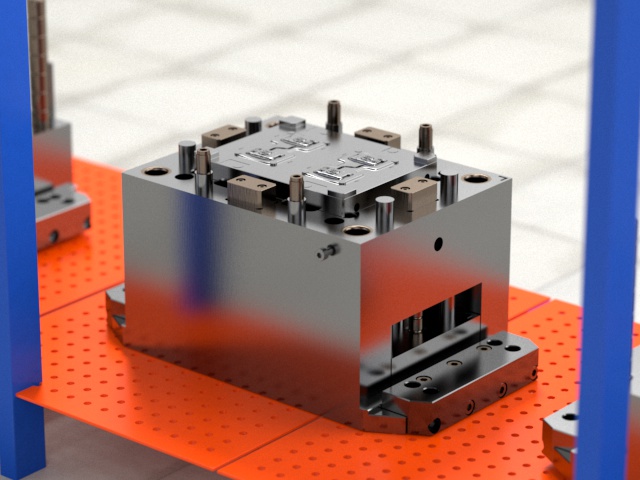

The mold base P/N is FCI2735 6011080. It is a three-plates mold with a mold size of 270465356mm. The gate type used is a pin point gate combined with a submarine gate. The mold has a life expectancy of 500k shots and weighs 357kg. It is designed to be used with an injection molding machine of 200T.

OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B

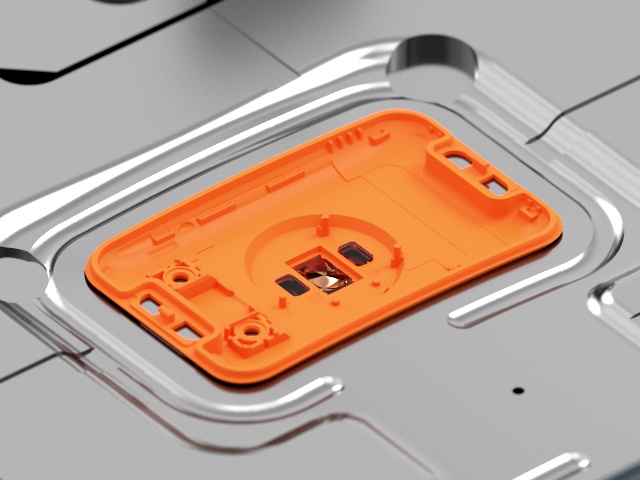

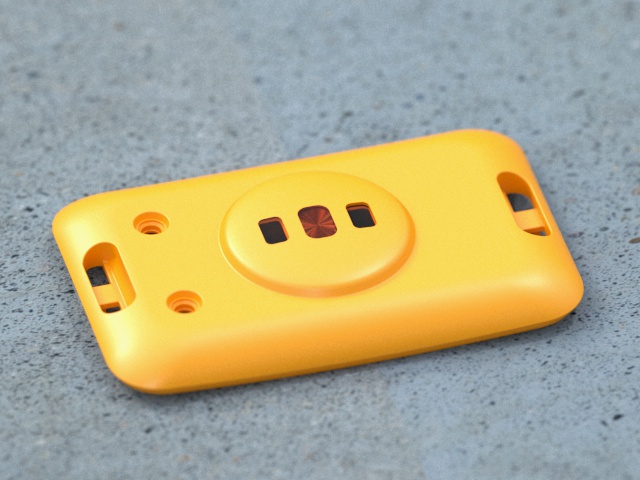

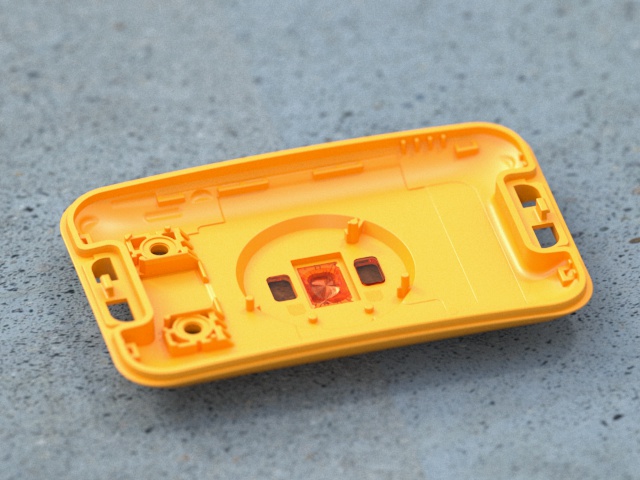

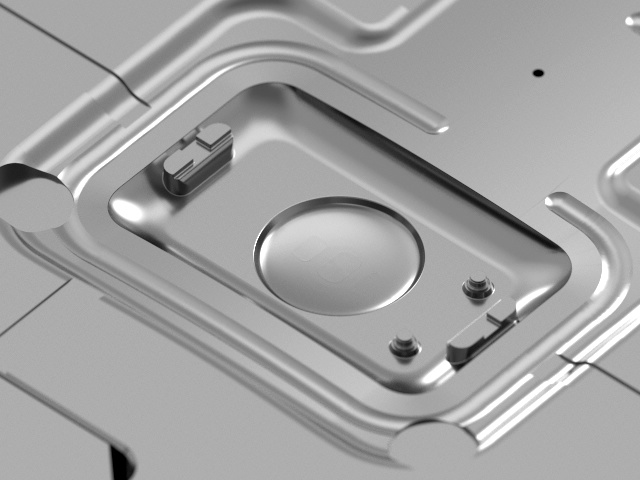

The part produced by this mold is made of PA (transparent) and PA + 60% GF (black), with a weight of 2.2g and dimensions of 26.42 X 42.24 X 5.79mm. The surface finish of the mold includes an A surface EDM with SPI-A2, an A surface EDM with SPI-B2, and an A surface EDM with VDI24# (Makino). The mold is built according to the LKM standard, and the cavity and core are made of hardened steel (1*4/S136). The injection and runner type used is a cold runner.

OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B

In addition, this mold features double-shot molding, allowing for the production of parts with multiple colors or materials.

OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B

Display diagram
